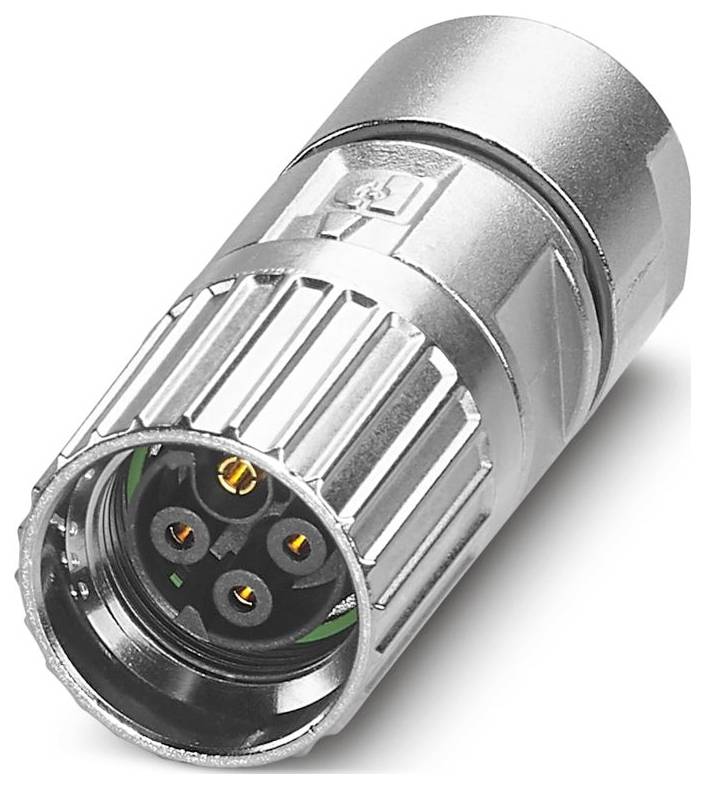

Image similar
Phoenix Contact 1069485 Connector straight Total number of pins: 3 + PE Piece 1 pc(s)
Product type
Connector
Connector type
straight
Total no. of pins
3 + PE
Content
1 pc(s)
Type
M17-3ES1N8A8003/1,5
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Number of power contacts: 4
- Type of locking: Other
- Construction of the casing: Straight
- For cable external diameter 5.5 - 9.5 mm
- Contact version: Other
- Min Number of mating cycles: 100
- With ground wire: No.
- With status display: No.
- Ambient temperature -40-105 °C.
- Type
M17-3ES1N8A8003/1,5
- Product type
Connector
- Connector type
straight
- Total no. of pins
3 + PE
- Content
1 pc(s)
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
- Cable Ø (max.)
9.5 mm
- Cable Ø up to
5.5 mm
- Manufacturer part #
1069485
- Cable Ø range
5.5 - 9.5 mm
- Number of pins
3
- Feature
shielded
- Packaging type
Piece
- Shielded
No
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3562933 Phoenix Contact 1069485 Connector straight Total number of pins: 3 + PE Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3562933 Phoenix Contact 1069485 Connector straight Total number of pins: 3 + PE Piece 1 pc(s)
Description
M17 cable connector, series: M17 PRO, straight, shielded: Yes, Screw locking, number of poles: 3+PE, rotary direction: standard, type of contact: socket, crimp connection, Cable diameter range: 5.5 mm ... 9.5 mm, coding: N, article is lead free according to RoHS II without exception 6c (Pb < 0.1 %)
