Name: Phoenix Contact 1070018 PG terminal 8.3 mm Push-in connector Green, Yellow 10 pc(s) Piece
Brand: Phoenix Contact
SKU: 2209092

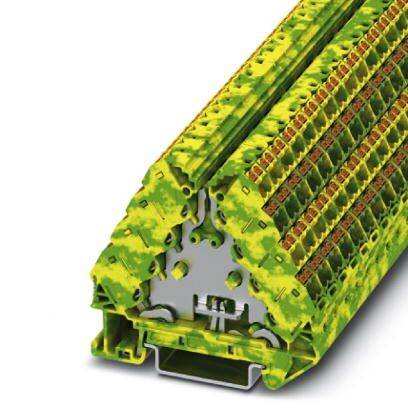

A modular terminal block system in triangular form, designed in yellow and green hues, for electrical installations.

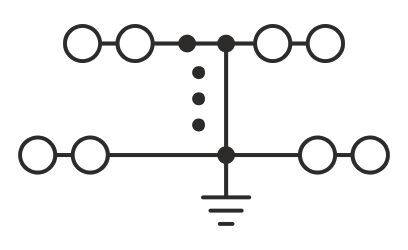

Circuit Diagram: Symbols for a serial circuit with earthing. Connections are represented by lines and nodes.

1/2

Image similar

Packaging type

Piece

Product type

PG terminal

Connection

Push-in connector

Cross section (flexible) (max.)

1.5 mm²

Cross section (inflexible) (max.)

2.5 mm²

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Number of connections: 16
Potential: 1
Nominal cross-section 1.5 mm²
Dimensioning surge voltage: 4 kV
Over voltage category III
Insulating material group: I
Open side wall: Yes
Test specification touch protection: DIN EN 50274 (VDE 0660-514):2002-11
Hand back safety: Guaranteed
Finger safety: Guaranteed

Packaging type: Piece

Product type: PG terminal

Features: + push-in spring bracket

Connection: Push-in connector

Cross section (flexible) (min.): 0.14 mm²

Cross section (flexible) (max.): 1.5 mm²

Cross section (inflexible) (min.): 0.14 mm²

Cross section (inflexible) (max.): 2.5 mm²

AWG (min.): 26

AWG max.: 14

Clamp width: 8.3 mm

No. of rows: 4

Pins per row: 2

Number of pins: 2

Factory colour: Green
Yellow

Min. stripping length: 8 mm

Stripping length (max.): 10 mm

Manufacturer part #: 1070018

Content: 10 pc(s)

Type: PTRVB 4-PE

Dim: (L x W) 64 mm x 8.3 mm

Width: 8.3 mm

Length: 64 mm

Rated surge voltage: 4 kV

Flammability rating: V0

Insulation material: PA

Insulation: PA

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2209092 Phoenix Contact 1070018 PG terminal 8.3 mm Push-in connector Green, Yellow 10 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 2209092 Phoenix Contact 1070018 PG terminal 8.3 mm Push-in connector Green, Yellow 10 pc(s) Piece

Description

Protective conductor terminal, type of connection: Push-in connection, number of connections: 16, number of poles: 2, cross-section: 0.14 mm² - 2.5 mm², AWG: 26 - 14, width: 8.3 mm, color: Green/yellow, type of mounting: NS 35/7.5, NS 35/15

This text is machine translated.
