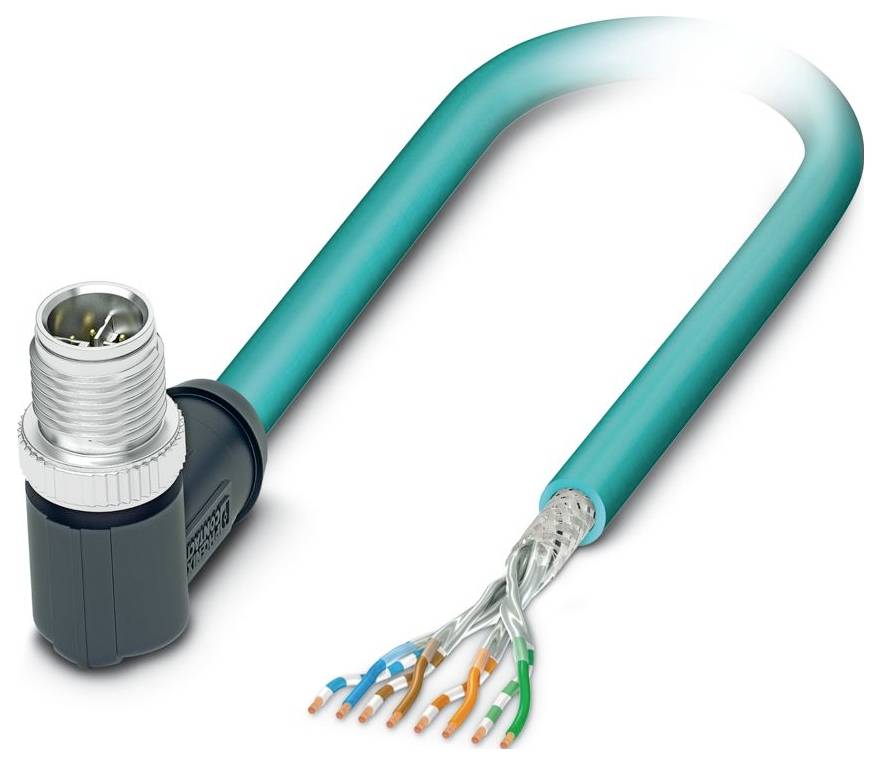

Phoenix Contact 1080716 Sensor/actuator cable M12 1 m No. of pins (RJ): 8 1 pc(s) Piece
Product type
Sensor/actuator cable
Connector standard
Ethernet
Connection side A
M12 plug, right angle
Connection side B
Cable, open end
No. of pins
8
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 8
- NOMINAL VOLTAGE 48 V AC;60 V DC
- Tightening torque 0.4 Nm (M12 connector)
- Flammability class according to UL 94: V0
- Ambient conditions: Environmental conditions
- Protection class IP65;IP67
- Ambient temperature (operation): -40 °C ... 80 °C (cable, fixed installation);-20 °C ... 80 °C (cable, moving laying)
- Standards/regulations: IEC 61076-2-109
- Overvoltage category II
- Pollution level 3
- Material seal FKM
- Material contact surface Ni/Au
- Nominal current IN: 0.5 A
- Cable outside diameter 6.40 mm ±0.2 mm
- Bus system: Ethernet
- Outer sheath, material: PUR
- Material conductor: Plain Cu stranded conductor
- 1 m conductor length
- Cable cross-section: 4x 0.14 mm 2
- Shielding: Advanced shielding technology
- M12 connector
- Status display: No.
- Outer sheath, color: Water blue RAL 5021
- Application: Standard
- Transfer medium: Copper
- Coding: X
- Insulation resistance: ≥ 500 MΩ*km.
- Material contact: CuZn
- Status display available: No.
- Material of contact carrier PA 6.6
- UL AWM STYLE 21238 (80 °C / 600 V)
- Shielded: Yes
- Cable type: Ethernet 10 Gbit [94F]
- AWG signal cable 26
- Wire diameter including insulation: 1 mm ±0.05 mm
- Material wire insulation: Foamed PE
- Single wire, color: White/blue-blue, white/orange-orange, white/green-green, white/brown-brown
- Total stranding: 4 pairs to the soul
- Nominal voltage cable ≤ 100 V
- Minimum bend radius, fixed 4 x D
- Minimum bend radius, flexibly laid: 8 x D
- Minimum bend radius, 26 mm fixed installation
- Minimum bend radius, movable 51 mm
- Flame resistance: According to IEC 60332-1-2;according to UN ECE-R 118.03;according to CSA C 22.2 No. 210 FT1
- Oil resistance: According to DIN EN 60811-404
- Number of cable outlets: 1
- Mating cycles ≥ 100
- Track 1: Track 1
- Track 2: Track 2
- Halogen-free: According to IEC 60754-1
- M12
- Conductor construction: 4x2xAWG26/7 | S/FTP
- Optical Shield Cover 70%
- Loop impedance ≤ 290.00 Ω/km
- Surge impedance 100 Ω 5 Ω ±(at 100 MHz)
- Testing voltage wire/wire 2000 V (50 Hz, 1 min.)
- Testing voltage wire/shield 2000.00 V (50 Hz, 1 min.)
- Pair stranding: 2 wires to pair
- Material of grip body: TPU, flame retardant, self extinguishing
- Material: Die-cast zinc, nickel-plated
- Sensor type: Ethernet
- Signal type/category: Ethernet CAT6A, 10 Gbit/s;CC-Link IE CAT6A, 10 Gbit/s.
- Transfer features (category): CAT6A
- Data transfer rate up to 10 GBit/s.
- Dimensional drawing: Pole picture M12-plug, 8-pin, X-coded, view of pin side
- Design: Free cable end
- Ethernet 10 Gb [94F]: Ethernet 10 Gb [94F]
- Packaging type
Piece
- Type
NBC-M12MRX/1,0-94F
- Product type
Sensor/actuator cable
- Connector standard
Ethernet
- Connection side A
M12 plug, right angle
- Connection side B
Cable, open end
- No. of pins
8
- Cable length
1 m
- Jacket material
PUR
- Nominal voltage
48 V AC
60 V DC
- Outside Ø
6.40 mm
- Cross-section (sensor/actuator wiring)
0.14 mm²
- Connection
Open cable end
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Cable colour
Water blue
- Coding
X
- Contact material
CuZn
- Contact surface
Ni/Au
IP65
IP67
- Features
Halogen-free
Shielded
- Min. temperature
-40 °C
- Max. temperature
80 °C
- Seal type
Screw-on
- Manufacturer part #
1080716
- Content
1 pc(s)
- Cable Ø
6.40 mm
- Rated voltage
48 V
- Shielded
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3563357 Phoenix Contact 1080716 Sensor/actuator cable M12 1 m No. of pins (RJ): 8 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3563357 Phoenix Contact 1080716 Sensor/actuator cable M12 1 m No. of pins (RJ): 8 1 pc(s) Piece
Description
Network cable, Ethernet CAT6A (10 Gbps) CAT6A (10 Gbps), 8-pin, PUR halogen- free, water-blue RAL 5021, shielded (Advanced Shielding Technology), angled plug M12, coding: X / IP67, at free cable end, cable length: 1 m.
