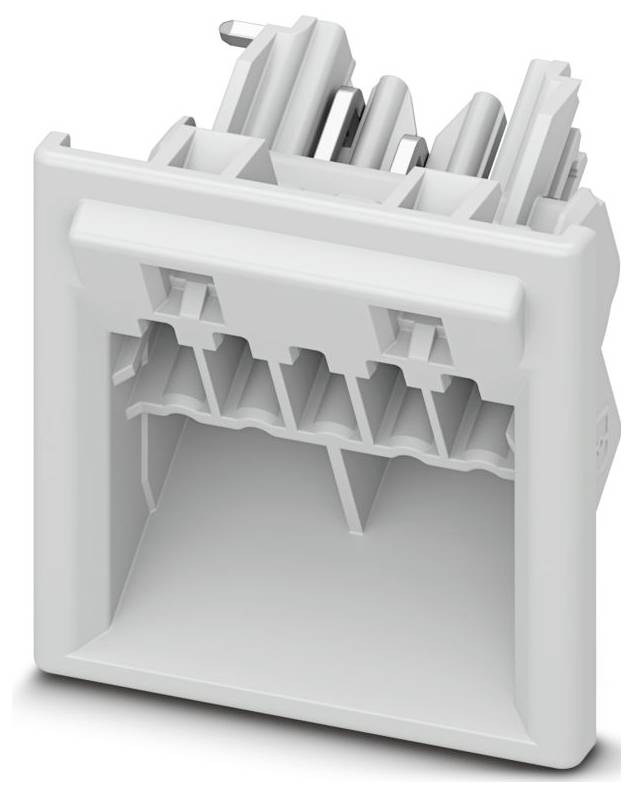

Phoenix Contact 1084018 PCB pin header Total number of pins 5 No. of rows 1 50 pc(s)
Product type
PCB pin header
Total no. of pins
5
CS
3.5 mm
Content
50 pc(s)
Total number of pins
5
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
PCB terminal strip
- Total number of pins 5
- No. of rows 1
- Content 50 pc(s)
Technical specifications
- Number of plug contact rows: 1
- Design of the electrical connection: Other
- Mounting method: Other
- Dimensioning surge voltage: 2.5 kV
- Rated current In:8 A.
- Operating temperature 40 to 105 °C.
- Flammability class of insulation material according to UL94: V0
- Diameter connection pin 1.2 mm
- Pin contact type
- Length of the pin 2.8 mm
- Number of pins: 5
- Grid dimension of the connections 3.5 mm
- Contact spacing 3.5 mm
- Connector design: Fixed connector
- Pollution level: 2
- Material of the contact coating: Tin
- Material of the insulating body: Other
- Over voltage category III
- Product type
PCB pin header
- Total no. of pins
5
- Total number of pins
5
- No. of rows
1
- CS
3.5 mm
- Case material
PA
- Manufacturer part #
1084018
- Content
50 pc(s)
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Type
ICC25-H/5L3,5-7035
- Connector contact surface
Tin
- Number of pins
5
- Case colour
Grey
- Rated voltage
150 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3563201 Phoenix Contact 1084018 PCB pin header Total number of pins 5 No. of rows 1 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3563201 Phoenix Contact 1084018 PCB pin header Total number of pins 5 No. of rows 1 50 pc(s)
Description
PCB baseboard, color: Light-gray, rated current: 8 5 A, rated voltage (III/2): 150 V, contact surface: Sn, contact type: Pen, number of potential: 5, number of rows: 1, number of connections: 5, Product family: IC..-H/..L3.5, grid dimension: 3.5 mm, mounting: Wave soldering, pin-layout: Linear pinning, Pin length [P]: 2.8 mm, number of solder pins per potential: 1, plug system: ICC 1.5, orientation plug face: standard, locking: latch locking, mounting type: without, Packaging type: cardboard packaging, items with left side pin outlet
