Name: Phoenix Contact 1085254 FL SWITCH 1105N Industrial Ethernet switch
Brand: Phoenix Contact
SKU: 2436062

A grey network switch with four Ethernet ports and a connection for fibre optic links, model 'FL SWITCH 1000'.

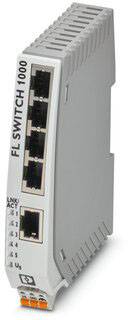

A grey network switch with 5 Ethernet ports. Label: 'FL SWITCH 1000'. Device for data distribution in networks.

1/2

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Basic functionality: Unmanaged switch
Autonegotiation
Store-and-forward switching mode
Additional functions: 100 BASE-TX/100BASE-FX (IEEE 802.3u)
Jumbo frames (max. 9216 byte)
Prioritization by Quality of Service (QoS) (IEEE 802.1p)
Energy-efficient Ethernet (IEEE 802.3az)
Gigabit Ethernet 1000Base-T (IEEE 802.3ab)
Mounting type: Mounting rail
Connection type: Push-in spring connection
Conductor cross-section min: 0.2 mm²
Conductor cross-section max. 2.5 mm²

Product type: Industrial Ethernet switch

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s

Working principle: Unmanaged switch

Ethernet ports: 5

10/100/1000 Mbps ports: 5 x

Power supply (LOV): via terminal

Weight: 170 g

Width: 22.5 mm

Height: 117 mm

Depth: 84 mm

Type: FL SWITCH 1105N

: IP30

Operating voltage: 24 V DC

Current consumption: Typical: 38 mA
maximum: 311 mA

Max. ambient temperature: -10 °C

Min. ambient temperature: +60 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2436062 Phoenix Contact 1085254 FL SWITCH 1105N Industrial Ethernet switch

User & Safety Instructions

User & Safety Instructions 2436062 Phoenix Contact 1085254 FL SWITCH 1105N Industrial Ethernet switch

Description

Narrow Ethernet switch, five RJ45 ports with 10/100/1000 MBit/s on all ports, automatic detection of the transmission speed, autocrossing function and QoS

The detection of auto-negotiation and auto-crossing simplifies installation and setup
Local diagnostic indicators with LEDs
RJ45 ports support a transmission speed of 10/100/1000 MBit/s.
Quality of Service (QoS)-prioritized messages
PROFINET Conformance Class A for real-time data exchange
Energy Efficient Ethernet according to IEEE 802.3az
PROFINET PTCP filter for reliable communication in PROFINET networks
Improved traffic prioritization for automation protocols
Jumbo frame support (frame size up to 9216 bytes/frame)
