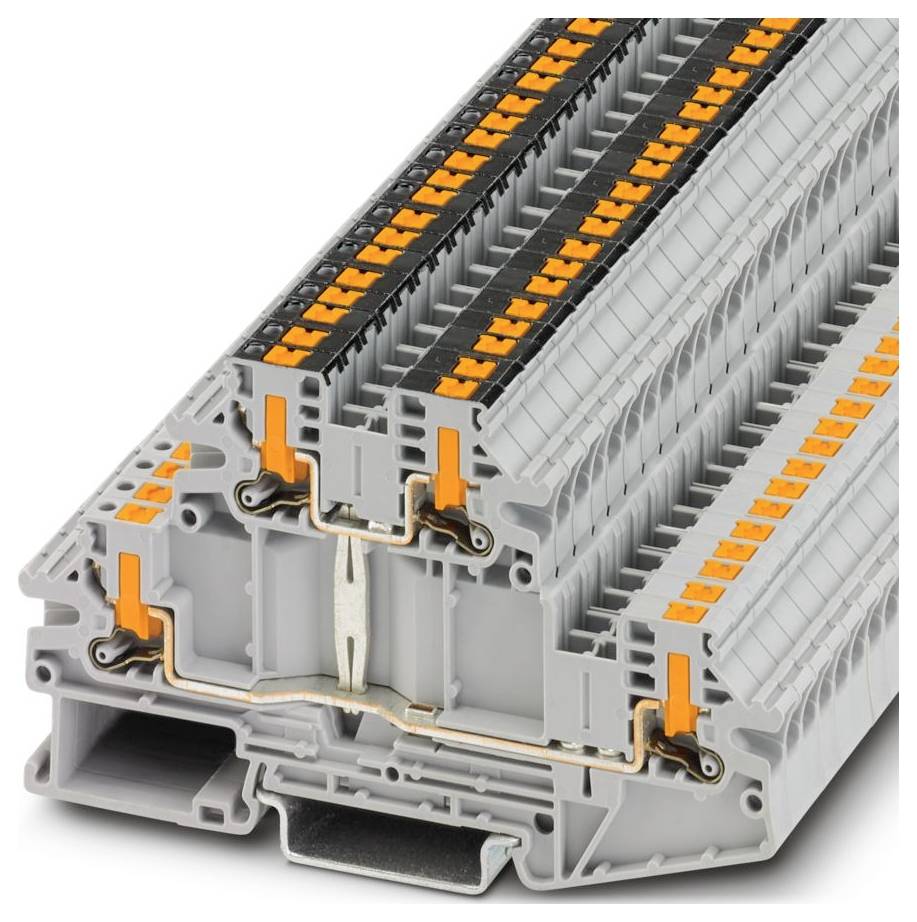

Phoenix Contact 1088939 Dual port terminal Push-in connector Grey 50 pc(s) Piece
Packaging type
Piece
Product type
Dual port terminal
Connection
Push-in connector
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Two-level terminal block
- PTTBV 4-PV
Technical specifications
- Cover plate required: Yes
- Suitable for single wire cross sections of 0.2-6 mm²
- Suitable for wire cross-sections of fine wire with wire-end sleeves from 0.2 to 0.2 mm²
- Suitable for wire cross-section of without wire-end sleeves: 0.2-6 mm²
- Number of floors: 2
- Number of clamping points per level: 2
- Design of electrical connection 1: Other
- Design of electrical connection 2: Other
- Flammability class of insulation material according to UL94: V0
- Floors bridged: Yes
- Suitable for conducting material: Aluminium/copper
- Mounting type: Top hat rail TH35
- Material of the insulating body: Other
- Packaging type
Piece
- Product type
Dual port terminal
- Features
built-in jumper
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
6 mm²
- No. of rows
2
- Pins per row
2
- Factory colour
Grey
- Nominal voltage
1000 V
- Manufacturer part #
1088939
- Content
50 pc(s)
- Type
PTTBV 4-PV
- Dim
(W x H x D) 6.2 x 99.5 x 56 mm
- Width
6.2 mm
- Height
99.5 mm
- Flammability rating
V0
- Depth
56 mm
- Rated voltage
1000 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3563863 Phoenix Contact 1088939 Dual port terminal Push-in connector Grey 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3563863 Phoenix Contact 1088939 Dual port terminal Push-in connector Grey 50 pc(s) Piece
Description
Double level terminal, nominal voltage: 1000 V, continuous thermal current Ith: 28 A, connection type: Push-in connection, 1. And 2. Floor, rated cross-section: 4 mm², cross-section: 0.2 mm² - 6 mm², mounting type: NS 35 /7.5, NS 35/15, color: Gray
