Phoenix Contact 1089997 Sensor/actuator cable M12 Plug, straight, Socket, straight 2 m No. of pins (RJ): 4 1 pc(s)

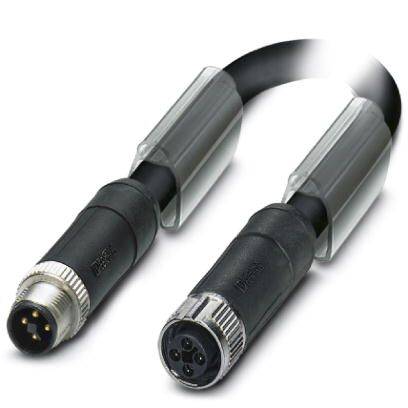

Two black and silver plugs of a cable for electronic connections, with multiple sockets and a protective cap.

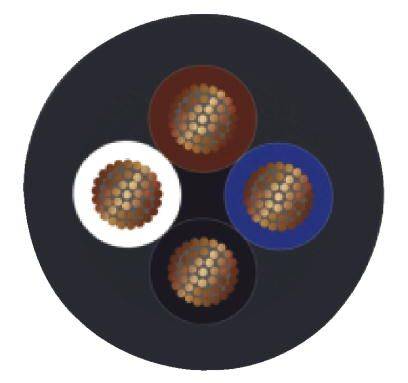

Cross-section of a four-core cable on a black background. Each core is sheathed in different colours (white, brown, blue, black).

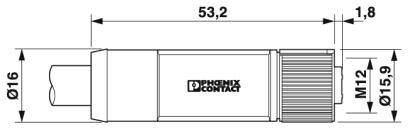

Technical drawing of a connector by Phoenix Contact. Dimensions: 53.2 mm in length, diameter: 16 mm, M12 thread, front diameter 15.9 mm.

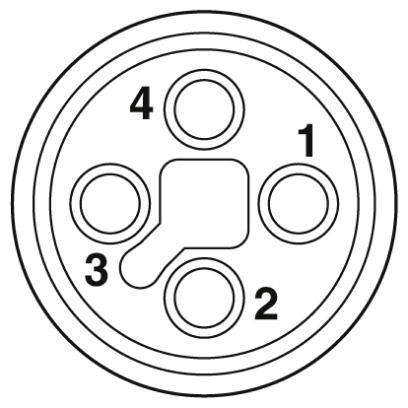

'Diagram of an electrical plug with four numbered terminals: 1 to 4.'
Four horizontal lines connect the numbers '1', '4', '3', '2' on the left side with the same numbers on the right side.
'Diagram of a 5-pin electrical plug with numbered contacts from 1 to 4 and a central, rectangular contact.'

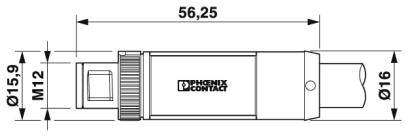

Diagram of a connector from Phoenix Contact. Length is 56.25 mm with M12 thread. Diameter at ends: 15.9 mm and 16 mm.
1/7
Image similar
Product type
Sensor/actuator cable
Connector type
Plug, straight
Socket, straight
Connector standard
Sensor connector
Connection side A
M12 plug, straight
Connection side B
M12 socket, straight
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Type

SAC-4P-M12MST/ 2,0-110/M12FST

Product type

Sensor/actuator cable

Connector type

Plug, straight

Socket, straight

Connector standard

Sensor connector

Connection side A

M12 plug, straight

Connection side B

M12 socket, straight

No. of pins

4

Cable length

2 m

Jacket material

PVC

Connection

Connector

Thread type connection side

M12

Thread type (wiring and installation)

M12

Coding

T

Features

T-codiert

Manufacturer part #

1089997

Content

1 pc(s)

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2209127 Phoenix Contact 1089997 Sensor/actuator cable M12 Plug, straight, Socket, straight 2 m No. of pins (RJ): 4 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2209127 Phoenix Contact 1089997 Sensor/actuator cable M12 Plug, straight, Socket, straight 2 m No. of pins (RJ): 4 1 pc(s)

Description

Power cable, 4-pin, PVC, black gray RAL 7021, straight plug M12, T-coded, straight socket M12, T-coded, cable length 2 m.

This text is machine translated.
