Phoenix Contact 1089998 Sensor/actuator cable M12 Plug, straight, Socket, straight 5.00 m No. of pins (RJ): 4 1 pc(s)

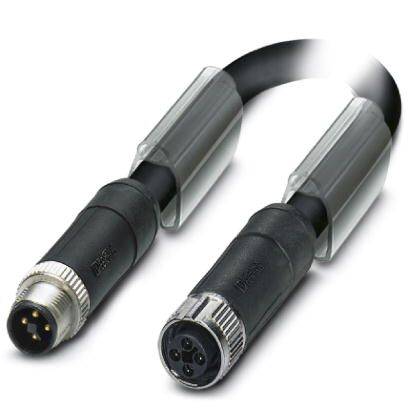

Black and silver cable with two round, five-pin plugs; suitable for audio or data connections.
A cross-section of a cable with four coloured conductors: white, brown, blue and black. Each conductor comprises dense copper wires.

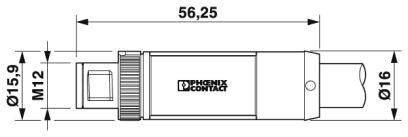

Technical drawing of a connector with dimensions: Length 56.25 mm, Diameter 16 mm, Thread Size M12, Spacing Ø15.9 mm.

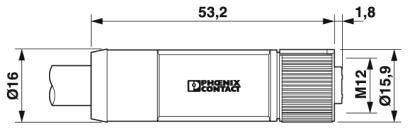

Technical drawing of a connector by Phoenix Contact. Length 53.2 mm, diameter 16 mm, M12 thread, detailed dimensions shown.

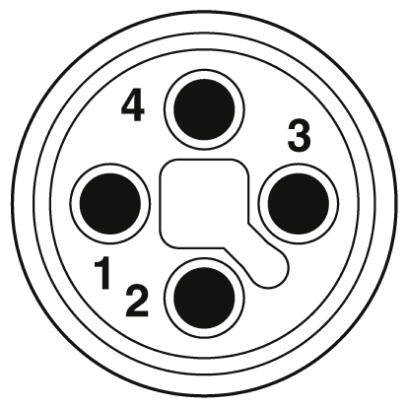

Diagram of a five-pin connector, with socket positions numbered 1 to 4, the central socket having a distinctive shape.

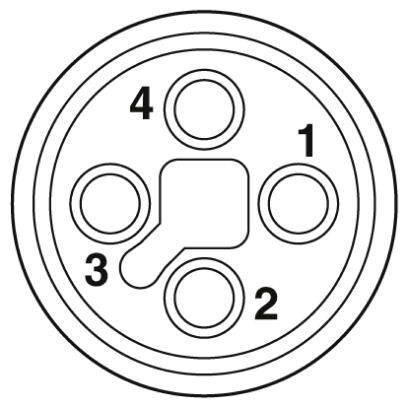

A round electrical plug with four numbered socket positions (1 to 4) shows the connection diagram.

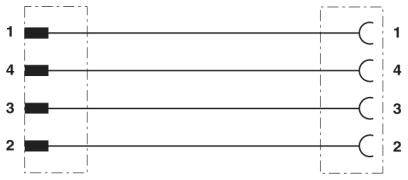

Diagram with four parallel lines. Each line connects numerically matching squares and semicircles: 1 to 1, 4 to 4, 3 to 3, 2 to 2.
1/7
Image similar
Product type
Sensor/actuator cable
Connector type
Plug, straight
Socket, straight
Connector standard
Sensor connector
Connection side A
M12 plug, straight
Connection side B
M12 socket, straight
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Standards/regulations: M12 plug connector IEC 61076-2-111
  • Insulation resistance ≥ 100 MΩ
  • Mating cycles: 100
  • Cable type: PVC black
  • Cable type (short code): 110
  • AWG power supply: 16
  • Outer sheath, color: Black gray RAL 7021
  • Number of bending cycles: 2000000
  • Travel distance: 10 m.
  • Travel speed 3 m/s
  • Acceleration: 10 m/s²
  • Material conductor: Bare copper wire
  • Pollution level 3
  • Flammability class according to UL 94: V0
  • Over voltage category III
  • Material grip body: PP
  • Material knurl: Die-cast zinc, nickel-plated
  • Conductor resistance: ≤ 13 Ω/km (at 20 °C)
Type

SAC-4P-M12MST/ 5,0-110/M12FST

Product type

Sensor/actuator cable

Connector type

Plug, straight

Socket, straight

Connector standard

Sensor connector

Connection side A

M12 plug, straight

Connection side B

M12 socket, straight

No. of pins

4

Cable length

5.00 m

Jacket material

PVC

Nominal voltage

63 V DC

Nominal current

12 A

Nominal current - rounded value

12 A

Connector cross-section (max.)

1.5 mm²

Outside Ø

7.55 mm

Connection

M12 plug

Thread type connection side

M12

Thread type (wiring and installation)

M12

Coding

T

Contact material

CuZn

Contact surface

Ni/Au

IP65

Features

T-codiert

Min. temperature

-25 °C

Max. temperature

+85 °C

Manufacturer part #

1089998

Content

1 pc(s)

Cable diameter (details)

7.55 mm

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2209128 Phoenix Contact 1089998 Sensor/actuator cable M12 Plug, straight, Socket, straight 5.00 m No. of pins (RJ): 4 1 pc(s)

Datasheet 2209128 Phoenix Contact 1089998 Sensor/actuator cable M12 Plug, straight, Socket, straight 5.00 m No. of pins (RJ): 4 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2209128 Phoenix Contact 1089998 Sensor/actuator cable M12 Plug, straight, Socket, straight 5.00 m No. of pins (RJ): 4 1 pc(s)

Description

Power cable, 4-pin, PVC, black gray RAL 7021, straight plug M12, T-coded, straight socket M12, T-coded, cable length 5 m.

This text is machine translated.
