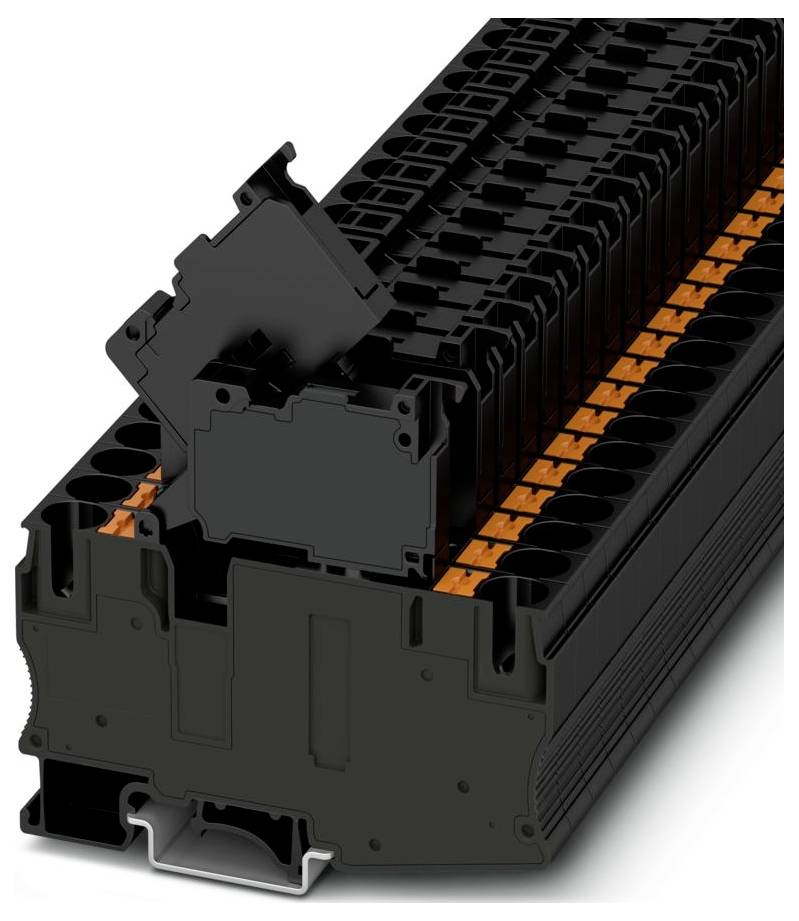

Image similar
Phoenix Contact 1090617 Fuse serial terminal 10.15 mm Push-in connector Grey 1 pc(s) Piece
Packaging type
Piece
Product type
Fuse serial terminal
Connection
Push-in connector
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
16 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Cover plate required: No.
- Suitable for single wire cross sections of 0.5-16 mm²
- Suitable for wire cross-sections of fine wire with wire-end sleeves of 0.5-10 mm²
- Suitable for wire cross-section of without wire-end sleeves: 0.5-10 mm²
- Number of floors: 1
- Fuse design: G-fuse 6,3X32 mm
- Fuse holder type: Other
- Design of electrical connection 1: Other
- Design of electrical connection 2: Other
- Rated current In:10 A.
- Flammability class of insulation material according to UL94: V0
- Packaging type
Piece
- Product type
Fuse serial terminal
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
16 mm²
- Clamp width
10.15 mm
- Factory colour
Grey
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Nominal voltage
630 V
- Manufacturer part #
1090617
- Content
1 pc(s)
- Type
PT 10-HESI (6,3X32)
- Dim
(L x W x H) 88.9 x 10.15 x 88.9 mm
- Width
10.15 mm
- Height
88.9 mm
- Length
88.9 mm
- Flammability rating
V0
- Depth
77.23004 mm
- Rated voltage
630 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3563563 Phoenix Contact 1090617 Fuse serial terminal 10.15 mm Push-in connector Grey 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3563563 Phoenix Contact 1090617 Fuse serial terminal 10.15 mm Push-in connector Grey 1 pc(s) Piece
Description
Fuse serial terminal, type of fuse: Glass / ceramic / ..., type of fuse: G / 6.3 x 32, rated voltage: 630 V, rated current: 10 A, connection type: Push-in connection, cross-section : 0.5 mm² - 16 mm², color: Grey
