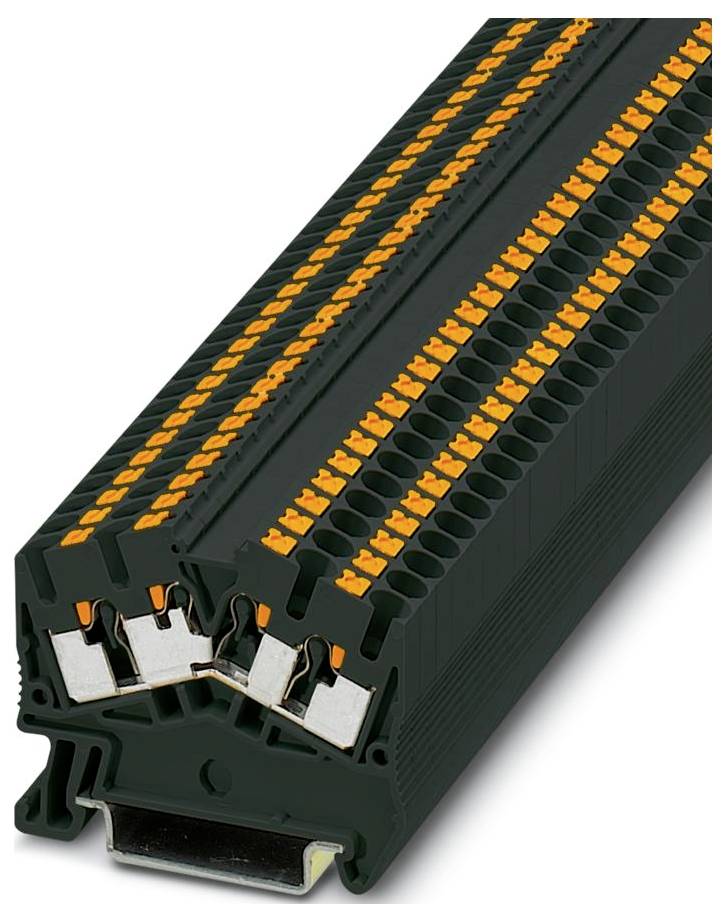

Phoenix Contact 1094477 Continuity Push-in spring-loaded terminal Black 50 pc(s)
Product type
Continuity
Connection
Push-in spring-loaded terminal
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Cover plate required: Yes
- Suitable for single wire cross sections of 0.14-4 mm²
- Suitable for wire cross-sections of fine wire with wire-end sleeves from 0.14 to 0.14 mm²
- Suitable for wire cross-section of without wire-end sleeves: 0.14-4 mm²
- Number of clamping points per level: 4
- Design of electrical connection 1: Other
- Design of electrical connection 2: Other
- Rated current In:24 A.
- Operating temperature 60-110 °C
- Flammability class of insulation material according to UL94: V0
- Floors bridged: Yes
- Explosion-tested version "Ex e": Yes
- Suitable for conducting material: Aluminium/copper
- Mounting type: Top hat rail TH35
- Material of the insulating body: Other
- Product type
Continuity
- Connection
Push-in spring-loaded terminal
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- Factory colour
Black
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Manufacturer part #
1094477
- Content
50 pc(s)
- Type
PTS 2,5-QUATTRO BK
- Dim
(W x H x D) 5.2 x 49 x 43 mm
- Width
5.2 mm
- Height
49 mm
- Flammability rating
V0
- Depth
43 mm
- Rated voltage
800 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3563659 Phoenix Contact 1094477 Continuity Push-in spring-loaded terminal Black 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3563659 Phoenix Contact 1094477 Continuity Push-in spring-loaded terminal Black 50 pc(s)
Description
Continuity terminal, rated voltage 800 V, rated current 24 A, number of connections 4, connection type: Push-in connection, 1. Floor, rated cross-section: 2.5 mm², cross-section: 0.14 mm² - 4 mm², mounting type: NS 35 /7.5, NS 35/15, color: Black
