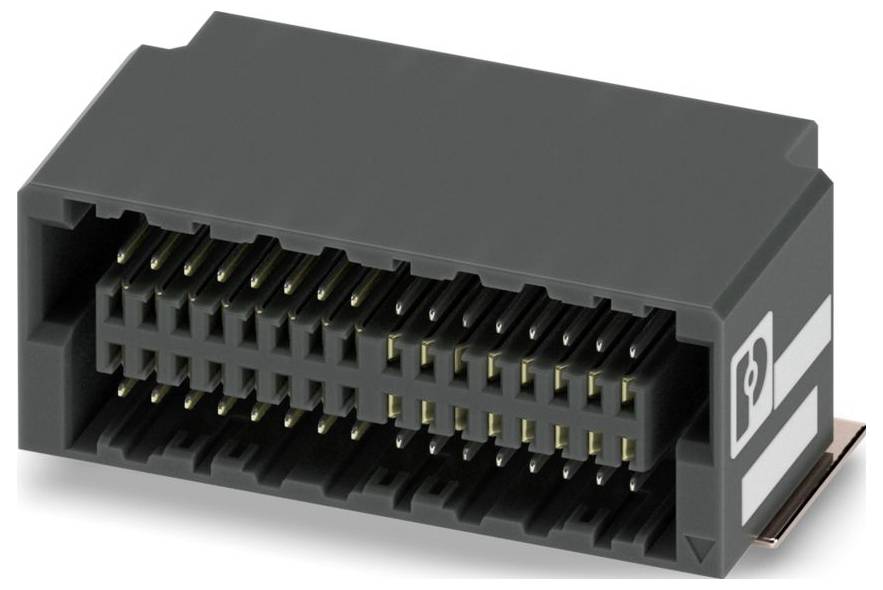

Image similar

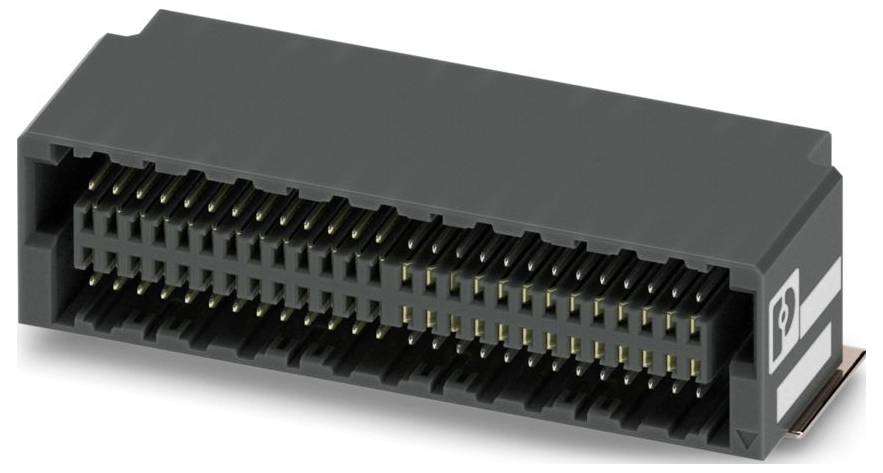

Phoenix Contact 1104543 Edge connector (sockets) Total number of pins 52 No. of rows 2 400 pc(s)
Product type
Edge connector (sockets)
Total no. of pins
52
CS
0.8 mm
Content
400 pc(s)
Total number of pins
52
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
SMD spring bars
- Total number of pins 52
- No. of rows 2
- Content 400 pc(s)
Technical specifications
- Number of plug contact rows: 2
- Belt type: Other
- Design of the electrical connection: Other
- Rated current In:1.7 A.
- Operating temperature 55 to 125 °C.
- Flammability class of insulation material according to UL94: V0
- Contact version: Socket
- Grid dimension of the connections 0.8 mm
- Contact spacing 0.8 mm
- Connector design: Fixed connector
- Pollution level: 2
- Material of the contact coating: Gold
- Material of the insulating body: Other
- Over voltage category III
- Product type
Edge connector (sockets)
- Total no. of pins
52
- Total number of pins
52
- No. of rows
2
- CS
0.8 mm
- Connection
SMD
- Case material
PA
- Manufacturer part #
1104543
- Content
400 pc(s)
- Max. temperature
125 °C
- Min. temperature
-55 °C
- Type
FP 0,8/ 52-FH
- Connector contact surface
Au
- Number of pins
52
- Case colour
Black
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3563803 Phoenix Contact 1104543 Edge connector (sockets) Total number of pins 52 No. of rows 2 400 pc(s)
User & Safety Instructions
User & Safety Instructions 3563803 Phoenix Contact 1104543 Edge connector (sockets) Total number of pins 52 No. of rows 2 400 pc(s)
Description
SMD female multipoint connector, rated current 1.7 A, test voltage 500 V AC, number of poles: 52, pitch 0.8 mm, Colour: black, contact surface: Au, contact type: socket, mounting: SMD-soldering
