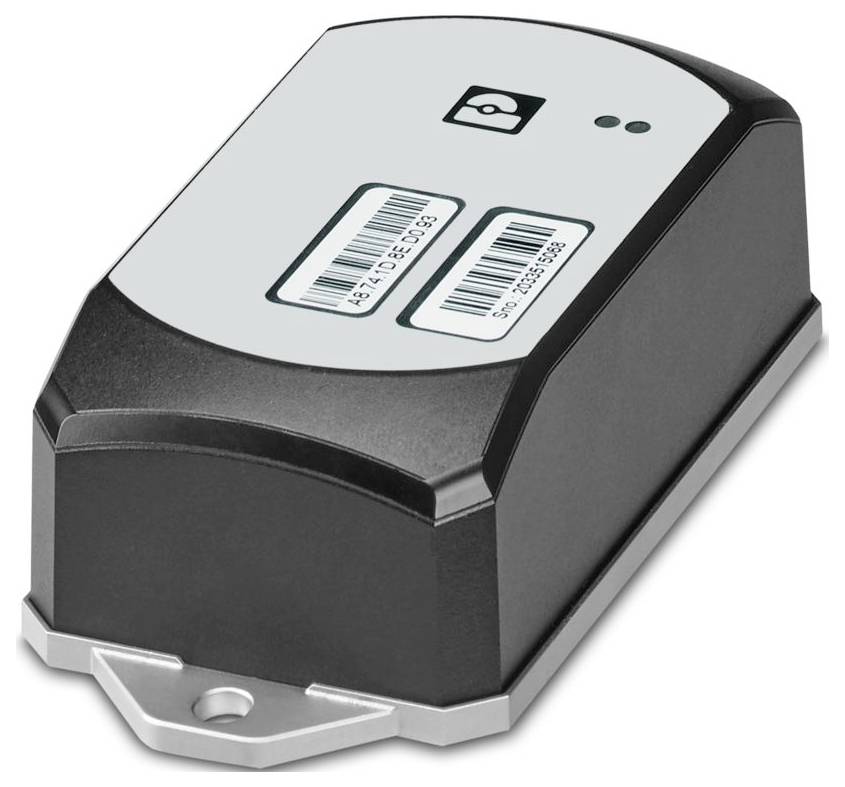

Phoenix Contact 1107132 FL TIMESERVER NTP RC module 10 / 100 MBit/s 100 m
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Number of poles: 2
- RJ45 connection type
- Conductor cross-section flexible: 0.2 mm² ... 1.5 mm².
- Conductor cross-section rigid: 0.2 mm² ... 1.5 mm².
- Width 62.8 mm
- Height: 36.5 mm
- Depth: 113.2 mm
- Ambient conditions: Environmental conditions
- Protection class: IP68 (manufacturer's specification, no evaluation by UL);UL/CSA: Housing classification 1 (use indoors)
- Ambient temperature (operation): -40 °C ... 70 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Mounting type: Single hole mounting (outside of control cabinets or other metallic housings)
- Permissible air humidity (operation): 10 % ... 95% (no condensation)
- Stripped length: 10 mm
- General: General
- Transmission speed 10/100 MBit/s
- Conductor cross-section flexible with wire-end sleeve with plastic sleeve: 0.25 mm² ... 0.75 mm²
- Conductor cross-section flexible with wire-end sleeve without plastic sleeve: 0.25 mm² ... 1.5 mm².
- UL 61010 listed
- UL, USA / Canada: UL, USA / Canada
- Maximum power loss at rated conditions 2.5 W.
- Number of interfaces: 1
- Connection type of the antenna: (Internal)
- Operating mode: NTP server (NTPv4) Stratum 1
- Frequency:1575.42 MHz (GPS, L1C/A);1602 MHz +k * 562.5 kHz (GLONASS, L1OF);1575.42 MHz (Galileo, E1-B/C);1575.42 MHz (Beidou, B1C)
- Transfer length 100 m (per segment)
- Supply voltage range: 10 V DC ... 30 V DC (SELV);Power-over-Ethernet (PoE IEEE 802.3af or higher)
- CE CE
- COMBICON connection method
- Permissible humidity (storage/transport): 5 % ... 95% (no condensation)
- Power consumption: ≤ 104 mA (24 V); max. 175 mA (UL, 10 V);max. 60 mA (PoE)
- Switch-on time: ≤ 100 s (time to Satfix (cold start incl. device start));~ 40 s (device start)
- Mounting instructions: Outside of electrical cabinets or other metallic housings
- Supported protocols: SNTP;NTP (v1, v2, v3, v4, without authentication);Network Time Security for NTP;NMEA 0183 (via TCP);HTTP;HTTPS;SNMP;SSH;DHCP;VLAN;Telnet
- Transmission physics: Copper
- Naming: GNSS (GPS/Galileo/GLONASS/Beidou)
- Colour (housing): Black (RAL 9005)
- Note on connection type: Auto negotiation and auto crossing
- Number of channels: 1 (RJ45 port)
- Response time: ≤ 2 ms (NTP, depending on Ethernet network and network utilization);1 s (NMEA position data update rate over TCP)
- Conductor cross-section flexible [AWG]: ... 16
- Material (casing): Polycarbonate
- Functions: Functions
- Power consumption: ≤ 2.5 W
- Accuracy class: CEP50= 5 m (installation in the open air)
- Configuration: Web-based management
- Note on dimensions: Outer dimensions
- Supply: Module electronics: Supply: Module electronics
- SUPPLY VOLTAGE 24 V DC (SELV)
- Ethernet (RJ45): Ethernet (RJ45)
- MTBF: 60 years (SN 29500 standard, temperature 40 °C, duty cycle 100 %);168 years (SN 29500 standard , temperature 40°C, duty cycle 34.25 %);316 years (SN 29500 standard, temperature 25 °C, duty cycle 21 %)
- Real-time clock: Real-time clock
- Accuracy Real-time clock: <15 seconds / month in offline mode (without GNSS reception and Internet connection, no temperature fluctuations);<60 seconds / month in offline mode (without GNSS reception and Internet connection, with temperature fluctuations)
- Cross-section area AWG: 24 ... 16 (copper cables classified for 75° C (UL))
- 1966101 FMC 1.5/ 3-STF-3.5: 1966101 FMC 1.5/ 3-STF-3.5
- Wireless
- Material (base plate): Zinc die-cast, nickel-plated
- Product type
RC module
- Transfer rate
10 / 100 MBit/s
- Interfaces
RJ45
- Distances up to
100 m
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3563986 Phoenix Contact 1107132 FL TIMESERVER NTP RC module 10 / 100 MBit/s 100 m
User & Safety Instructions
User & Safety Instructions 3563986 Phoenix Contact 1107132 FL TIMESERVER NTP RC module 10 / 100 MBit/s 100 m
Description
GNSS receivers and network time protocol (NTP) time server for Ethernet networks, receives time, date and location via GPS, GLONASS or Galileo, web-based management, PoE (AF) or 24 VDC power supply, integrated antenna, IP68 chassis
