Name: Phoenix Contact 1108501 PCB connector 50 pc(s)
Brand: Phoenix Contact
SKU: 3563991

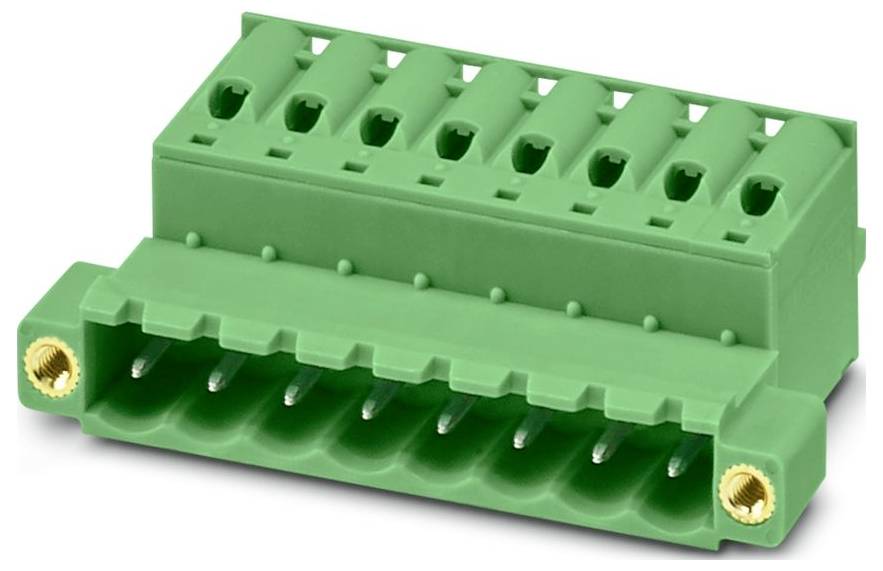

A green plastic electrical connector with multiple terminals, designed for circuit board connections, showing a row of female ports.

Image similar

Product type

PCB connector

Content

50 pc(s)

Case material

Manufacturer part #

1108501

Type

FKIC 2,5/ 5-STGF-5,08

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PCB connector

Content 50 pc(s)

Technical specifications

Connectable cable type: Round cable
Wire cross-section with single wire connections: 0.2-2.5 mm²
Suitable for wire cross-sections of fine wire with wire-end sleeves from 0.25 to 2.5 mm²
Suitable for wire cross-sections of fine wire without wire-end sleeves: 0.2-2.5 mm²
Number of plug contact rows: 1
Design of electrical connection: Spring-loaded connection
Dimensioning surge voltage: 4 kV
Rated current In:12 A.
Operating temperature 40 to 105 °C.
Flammability class of insulation material according to UL94: V0
Contact version: Other
Grid dimension of the connections 5.08 mm
Contact spacing 5.08 mm
Connection type: Other
Pollution level: 2
Material of the contact coating: Tin
Housing material: Other
Material of the insulating body: Polyamide (PA)
Material of contact: Copper
Angle contact/conductor connection: Other
Over voltage category III

Product type: PCB connector

Case material: PA

Manufacturer part #: 1108501

Content: 50 pc(s)

Type: FKIC 2,5/ 5-STGF-5,08

Case colour: Green

Rated voltage: 320 V

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Connector type

Content

Packaging type

Total no. of pins

Phoenix Contact 1008663 PCB connector Total number of pins 2 No. of rows 1 1000 pc(s) Carton

Item no:3561655

Unavailable

Conrad Electronic

Plug

1000 pc(s)

3.81 mm

Carton

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1012266 PCB connector Total number of pins 2 No. of rows 1 250 pc(s) Carton

Item no:3561551

Unavailable

Conrad Electronic

PCB connector

250 pc(s)

2.54 mm

Carton

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1012268 PCB connector Total number of pins 4 No. of rows 1 250 pc(s) Carton

Item no:3561556

Unavailable

Conrad Electronic

250 pc(s)

2.54 mm

Carton

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1012269 PCB connector Total number of pins 5 No. of rows 1 100 pc(s) Carton

Item no:3561565

Unavailable

Conrad Electronic

Socket

100 pc(s)

2.54 mm

Carton

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1012270 PCB connector Total number of pins 6 No. of rows 1 100 pc(s) Carton

Item no:3561572

Unavailable

Conrad Electronic

Plug

100 pc(s)

2.54 mm

Carton

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1012271 PCB connector Total number of pins 7 No. of rows 1 100 pc(s) Carton

Item no:3561560

Unavailable

Conrad Electronic

100 pc(s)

2.54 mm

Carton

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1012272 PCB connector Total number of pins 8 No. of rows 1 100 pc(s) Carton

Item no:3561574

Unavailable

Conrad Electronic

Power strip

100 pc(s)

2.54 mm

Carton

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1012273 PCB connector Total number of pins 9 No. of rows 1 100 pc(s) Carton

Item no:3561577

Unavailable

Conrad Electronic

PCB connector

100 pc(s)

2.54 mm

Carton

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1012274 PCB connector Total number of pins 10 No. of rows 1 100 pc(s) Carton

Item no:3561580

Unavailable

Conrad Electronic

Socket

100 pc(s)

2.54 mm

Carton

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1012276 PCB connector Total number of pins 11 No. of rows 1 100 pc(s) Carton

Item no:3561564

Unavailable

Conrad Electronic

PCB connector

100 pc(s)

2.54 mm

Carton

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 3563991 Phoenix Contact 1108501 PCB connector 50 pc(s)

User & Safety Instructions

User & Safety Instructions 3563991 Phoenix Contact 1108501 PCB connector 50 pc(s)

Description

PCB connector, nominal cross-section: 2.5 mm², color: Green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact type: Pen, number of rows: 1, number of rows: 5, product family: FKIC 2.5/..-STGF, grid dimension: 5.08 mm, connection type: Push-in spring connection, Connection direction of conductor/board: 0 °, snap-in hooks: - without latching hook, connector system: COMBICON MSTB 2.5, locking: screw locking, mounting system: threaded flange, packing type: packed in cardboard

This text is machine translated.
