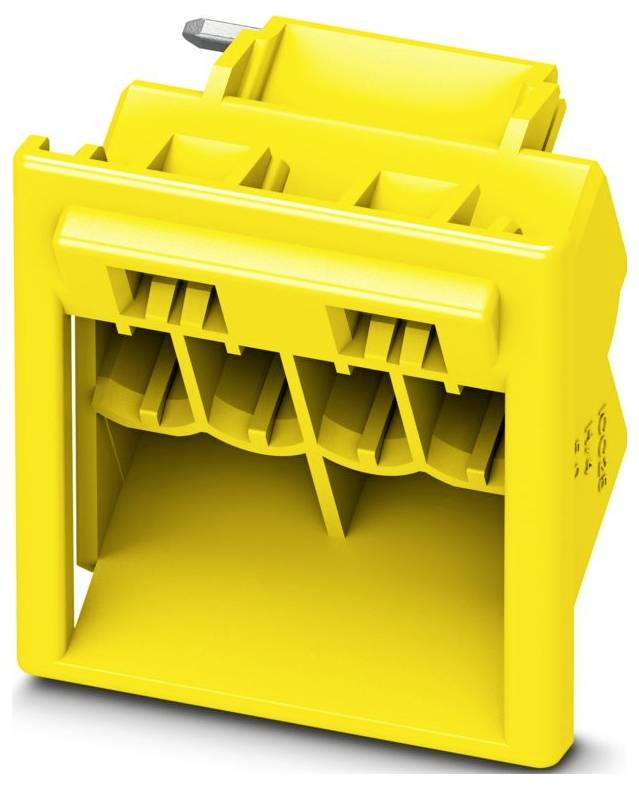

Image similar
Phoenix Contact 1112639 PCB pin header Total number of pins 4 No. of rows 1 50 pc(s) Carton
Product type
PCB pin header
Total no. of pins
4
Connector type
Edge connector, straight
CS
5 mm
Content
50 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
PCB terminal strip
- Total number of pins 4
- No. of rows 1
- Content 50 pc(s)
Technical specifications
- Number of plug contact rows: 1
- Design of the electrical connection: Other
- Mounting method: Other
- Dimensioning surge voltage: 4 kV
- Rated current In:16 A.
- Operating temperature 40 to 105 °C.
- Flammability class of insulation material according to UL94: V0
- Diameter connection pin 1.4 mm
- Pin contact type
- Length of the pin 3.5 mm
- Number of pins: 4
- Grid dimension of the connections 5 mm
- Contact spacing 5 mm
- Connector design: Fixed connector
- Pollution level: 2
- Material of the contact coating: Tin
- Material of the insulating body: Other
- Over voltage category III
- Packaging type
Carton
- Product type
PCB pin header
- Total no. of pins
4
- Connector type
Edge connector, straight
- Features
+ locking mechanism
- Total number of pins
4
- No. of rows
1
- CS
5 mm
- Pins per row
4
- Connection
Soldering
- Case material
PA
- Manufacturer part #
1112639
- Content
50 pc(s)
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Type
ICC25-H/4L5,0-1018
- Board contact surface
Tin
- Connector contact surface
Tin
- Number of pins
4
- Case colour
Yellow
- Rated voltage
320 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3564081 Phoenix Contact 1112639 PCB pin header Total number of pins 4 No. of rows 1 50 pc(s) Carton
User & Safety Instructions
User & Safety Instructions 3564081 Phoenix Contact 1112639 PCB pin header Total number of pins 4 No. of rows 1 50 pc(s) Carton
Description
PCB baseboard, rated cross-section: 2.5 mm², Colour: Yellow, rated current: 16 4 A, rated voltage (III/2): 320 V, contact surface: Sn, contact type: Pin, number of potential: 4, number of rows: 5, number of connections: 4, Product family: IC..-H/..L5.0, grid dimension: 1 mm, mounting: Wave soldering, pin layout: Linear pinning, pin layout: Pin length [P]: 3.5 mm, number of solder pins per potential: 1, plug system: ICC 2.5, orientation plug face: standard, locking: latch locking, mounting type: without, Packaging type: cardboard packaging, items with left side pin outlet
