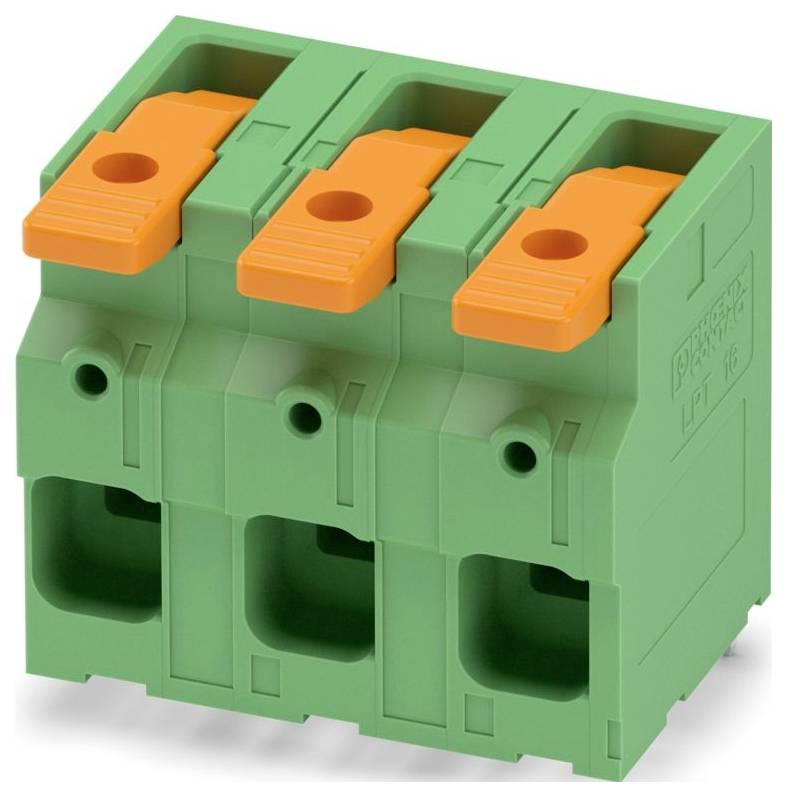

Phoenix Contact 1119819 PCB terminal 25 mm² Number of pins 3 Green 25 pc(s)
Product type
PCB terminal
CS
15 mm
Pins per row
3
Number of pins
3
Connection
Push-in connector
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
PCB terminal
- Content 25 pc(s)
Technical specifications
- Suitable for single wire cross sections of 0.75-16 mm²
- Suitable for wire cross-sections of fine wire with wire-end sleeves of 0.75-16 mm²
- Suitable for wire cross-section of without wire-end sleeves: 0.75-25 mm²
- Multiple wire cross-section that can be connected: 16-16 mm²
- Connection type conductor: Spring-loaded connector
- Type of connection PCB: Solder connection
- Number of electrical connections: 3
- Number of floors: 1
- Tape type: Cardboard (for SMD)
- Type of PCB mounting: Connection contact
- Mounting type: Soldering
- Dimensioning surge voltage: 8 kV
- Rated current In:76 A.
- Operating temperature 40 to 105 °C.
- Flammability class of insulation material according to UL94: V0
- Diameter connection pin 1.7 mm
- Length of the pin 3.6 mm
- Grid dimension of the connections 15 mm
- Pollution level: 2
- Material of the connection surface: Tin
- Material of the insulating body: Other
- Over voltage category III
- Type
LPT 16/ 3-15,0-ZB
- Product type
PCB terminal
- Features
+ actuator
- CS
15 mm
- No. of rows
1
- Pins per row
3
- Number of pins
3
- Connection
Push-in connector
- Nominal current
76 A
- Cross section (flexible) (min.)
0.75 mm²
- Nominal current - rounded value
76 A
- Cross section (inflexible) (min.)
0.75 mm²
- Cross section (flexible) (max.)
25 mm²
- Cross section (inflexible) (max.)
16 mm²
- Contact material
Tin
- Factory colour
Green
- Manufacturer part #
1119819
- Content
25 pc(s)
- Height
39.6 mm
- Case colour
Green
- Rated voltage
1000 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3564468 Phoenix Contact 1119819 PCB terminal 25 mm² Number of pins 3 Green 25 pc(s)
User & Safety Instructions
User & Safety Instructions 3564468 Phoenix Contact 1119819 PCB terminal 25 mm² Number of pins 3 Green 25 pc(s)
Description
Conductor board terminal, rated current: 76 A, rated voltage (III/2): 1000 V, nominal cross-section: 16 mm², number of potentials: 3, number of rows: 1, number of poles per row: 3, product family: LPT 16/, grid dimension: 15 mm, connection type: Lever-push-in connection, mounting: Shaft soldering, Connection direction of conductor/board: 0°, color: green, pin layout: zig-zag-pinning W, pin length [P]: 3.6 mm, packing type: packed in carton
