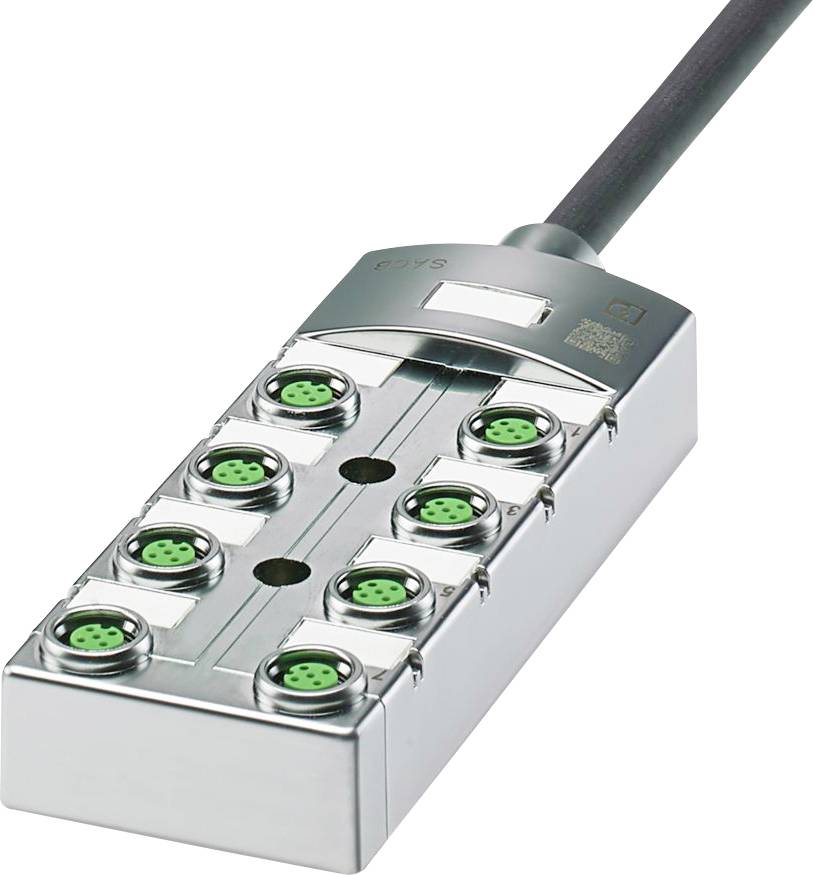

Phoenix Contact 1155993 Distribution box M12 Socket 5 m No. of pins (RJ): 5 1 pc(s) Piece
Product type
Distribution box
Connector type
Socket
Connection side A
M12
Connection side B
M12
No. of pins
5
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Connection for NPN sensors: Yes
- Number of channels per slot: 2
- Number of sensor/actuator slots: 8
- Output design for sensor / actuator cables: M12
- Operating temperature
- Cable length configurable: No.
- Length of pre-assembled cable: 5 m.
- Max. Load capacity per connection socket 2 A
- Max. Total current 12 A.
- With LED display: No.
- With potential separation: No.
- Number of poles of the sensor/actuator slots: 5
- Drag-chain capability of fixed cable version: Yes
- Material of the contact coating: Gold
- Material of the insulating body: Polyamide (PA)
- Packaging type
Piece
- Type
SACB-8/16- 5,0PUR P12 SH
- Product type
Distribution box
- Connector type
Socket
- Connection side A
M12
- Connection side B
M12
- No. of pins
5
- Cable length
5 m
- Jacket material
PUR
- Connection
M12 socket
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Coding
A
- Contact material
Gold
- Contact surface
Gold
IP65
- Features
Suitable for drag chains
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Seal type
Push-Pull
- Manufacturer part #
1155993
- Content
1 pc(s)
- Depth
153 mm
- Height
26 mm
- Width
58 mm
- Case colour
Silver
- Operating voltage
48 V
- Rated voltage
48 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3452786 Phoenix Contact 1155993 Distribution box M12 Socket 5 m No. of pins (RJ): 5 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3452786 Phoenix Contact 1155993 Distribution box M12 Socket 5 m No. of pins (RJ): 5 1 pc(s) Piece
Description
Distribution box, application: Standard, extended requirements, connection type: M12-socket metal / M12-push-pull socket, number of slots: 8, pole number: 5, coding: A, slot assignment: Double, status display: No, Universal; Trunk connection: fixed connection 180°, PUR/PVC, cable length: 5 m, shielding: yes
