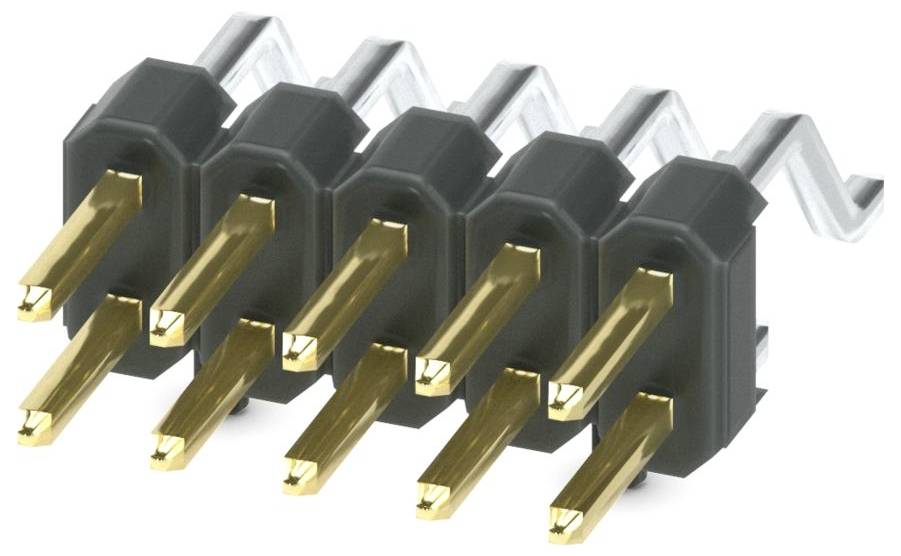

Image similar
Phoenix Contact 1156939 Pin strip Total number of pins 10 No. of rows 2 390 pc(s) Bulk
Product type
Pin strip
Total no. of pins
10
CS
2.54 mm
Content
390 pc(s)
Packaging type
Bulk
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Pin strip
- Total number of pins 10
- No. of rows 2
- Content 390 pc(s)
Technical specifications
- Number of plug contact rows: 2
- Belt type: Other
- Design of the electrical connection: Other
- Rated current In:3 A.
- Operating temperature 40 to 125 °C.
- Flammability class of insulation material according to UL94: V0
- Pin contact type
- Grid dimension of the connections 2.54 mm
- Contact spacing 2.54 mm
- Pollution level: 2
- Material of the contact coating: Gold
- Material of the insulating body: Other
- Over voltage category III
- Packaging type
Bulk
- Product type
Pin strip
- Total no. of pins
10
- Total number of pins
10
- No. of rows
2
- CS
2.54 mm
- Connection
Soldering
- Case material
PA
- Manufacturer part #
1156939
- Content
390 pc(s)
- Contact material
Gold
- Max. temperature
125 °C
- Min. temperature
-40 °C
- Type
FQ 2,54D/ 10-PH-1-BT
- Connector contact surface
Au
- Number of pins
10
- Case colour
Black
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3565319 Phoenix Contact 1156939 Pin strip Total number of pins 10 No. of rows 2 390 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3565319 Phoenix Contact 1156939 Pin strip Total number of pins 10 No. of rows 2 390 pc(s) Bulk
Description
SMD multi-pin connector, rated current 3 A, test voltage 500 V AC, number of poles: 10, pitch: 2.54 mm, Colour: black, contact surface: Au, contact type: pin, mounting: SMD-soldering
