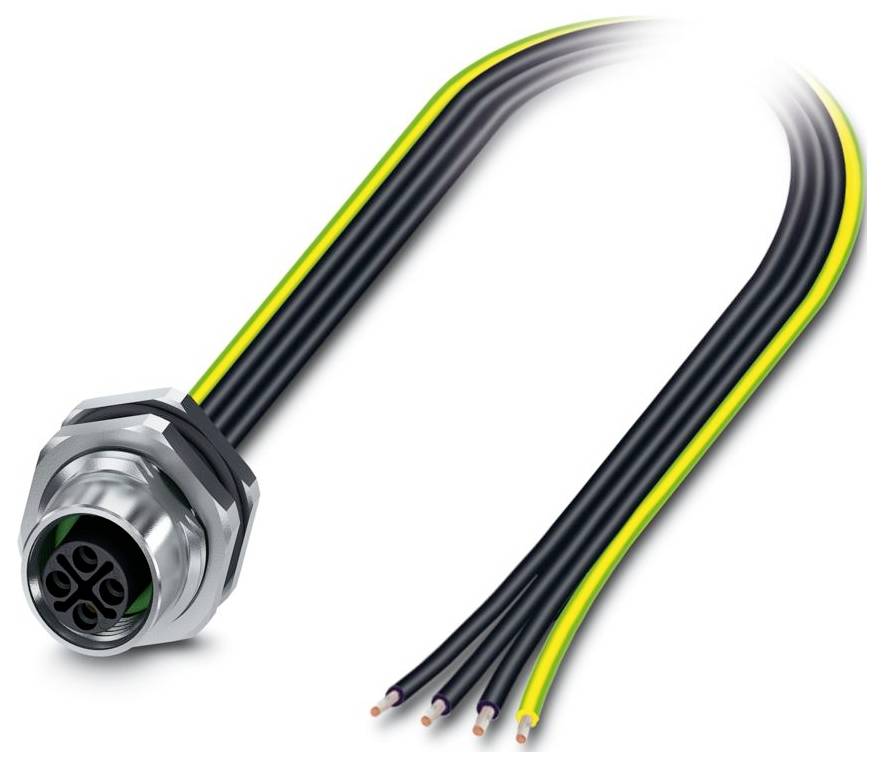

Image similar
Phoenix Contact 1162635 Connector Total number of pins: 4 50 pc(s)
Product type
Connector
Total no. of pins
4
Connection
Socket
Content
50 pc(s)
Type
SACC-DSI-M12FSS-4P-M16XL/1,0PE
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Wire cross-section: 1.31 mm²
- Number of power contacts: 4
- Type of plug contact, outside: Female (female)
- Type of plug contact, inside: Without
- Rated current In:12 A.
- Operating temperature range: -25 to 85 °C.
- Flammability class of insulation material according to UL94: V0
- Screw-in thread M16
- Min Number of mating cycles: 100
- With PE connection: No.
- With shield connection: No.
- Mounting type: Rear panel fitting
- Protection class (IP), fitted: Other
- Surrounding temperature 85-85 °C
- Material of wire insulation: Other
- Contact coating material: Other
- Housing material: Other
- Type
SACC-DSI-M12FSS-4P-M16XL/1,0PE
- Product type
Connector
- Total no. of pins
4
- Connection
Socket
- Content
50 pc(s)
- Max. temperature
85 °C
- Min. temperature
85 °C
- Leading contact (PE)
No
- Manufacturer part #
1162635
- Number of pins
4
- Length
1 m
- max. cross section
1.31 mm²
- Cross-section range
1.31 mm² (max)
- Feature
S-coded
- Cable length
1 m
- Rated voltage
630 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3565218 Phoenix Contact 1162635 Connector Total number of pins: 4 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3565218 Phoenix Contact 1162635 Connector Total number of pins: 4 50 pc(s)
Description
Rear panel connector, power, 4-pin, socket, straight, M12 Standard, coding: S, free end of line, rear panel fitting, M16 x 1.5, Individual wires, cable length: 1 m, 1.31 mm², UL/cUL stranded wire, cast, this item is undergoing a fluidized conversion, lead-free alternative as per RoHS II, without exception 6c (Pb < 0.1 %) possible on request
