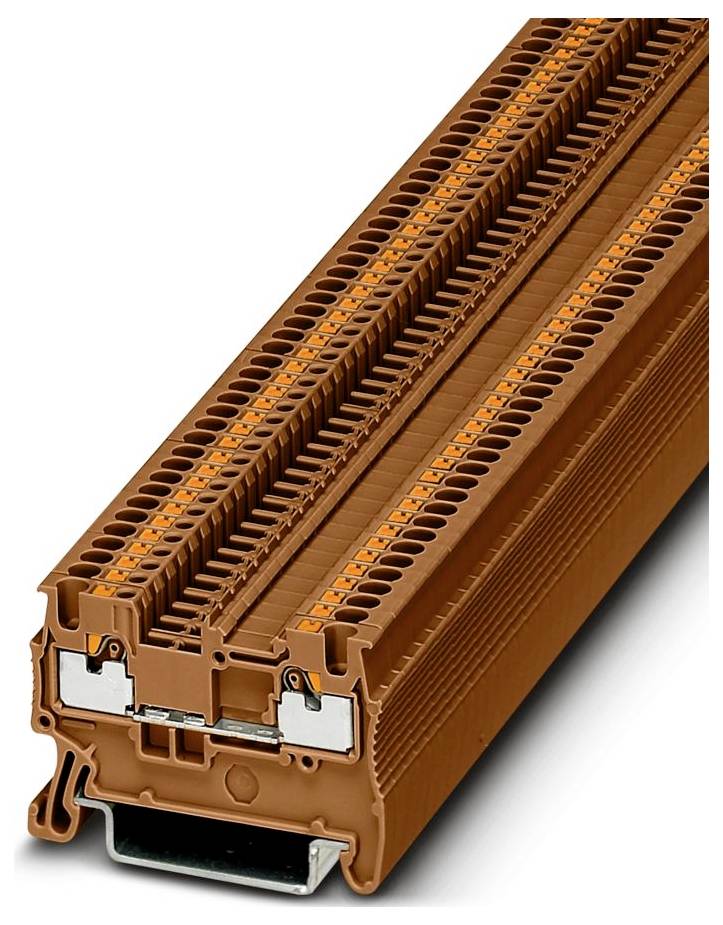

Phoenix Contact 1176488 Continuity Push-in connector Brown 50 pc(s) Piece
Packaging type
Piece
Product type
Continuity
Connection
Push-in connector
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (max.)
1.5 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Feed-through terminal
- PT 1,5/S BN
Technical specifications
- Cover plate required: Yes
- Wire cross-section with single wire connections: 0.14-1.5 mm²
- Suitable for wire cross-sections of fine wire with wire-end sleeves from 0.14 to 0.14 mm²
- Suitable for wire cross-sections of fine wire without wire-end sleeves: 0.14-1.5 mm²
- Number of clamping points per level: 2
- Design of electrical connection 1: Other
- Design of electrical connection 2: Other
- Rated current In:17.5 A.
- Operating temperature 60-110 °C
- Flammability class of insulation material according to UL94: V0
- Floors bridged: Yes
- Suitable for conducting material: Aluminium/copper
- Mounting type: Top hat rail TH35
- Material of the insulating body: Other
- Packaging type
Piece
- Product type
Continuity
- Features
built-in jumper
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- Number of pins
2
- Factory colour
Brown
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Nominal voltage
500 V
- Manufacturer part #
1176488
- Content
50 pc(s)
- Type
PT 1,5/S BN
- Dim
(W x H x D) 3.5 x 45 x 30.5 mm
- Width
3.5 mm
- Height
45 mm
- Flammability rating
V0
- Depth
30.5 mm
- Rated voltage
500 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3565587 Phoenix Contact 1176488 Continuity Push-in connector Brown 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3565587 Phoenix Contact 1176488 Continuity Push-in connector Brown 50 pc(s) Piece
Description
Continuity terminal, rated voltage 500 V, rated current 17.5 A, number of connections 2, connection type: Push-in connection, 1. Floor, rated cross-section: 1.5 mm², cross-section: 0.14 mm² - 1.5 mm², mounting type: NS 35 /7.5, NS 35/15, color: Brown
This text is machine translated.
This text is machine translated.
