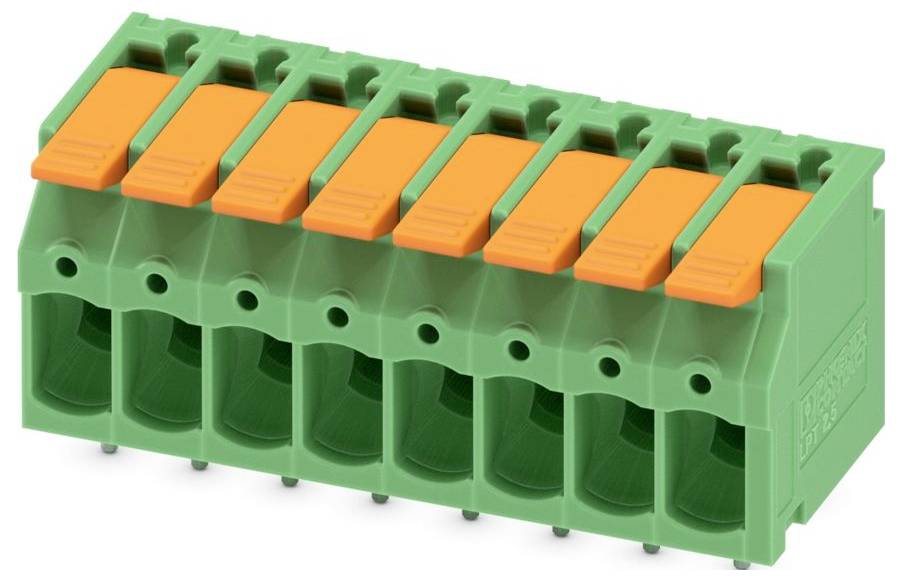

Phoenix Contact 1190304 PCB terminal 4 mm² Number of pins 8 Green 50 pc(s)
Product type
PCB terminal
CS
5 mm
Pins per row
8
Number of pins
8
Connection
Spring-loaded connector
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
PCB terminal
- Content 50 pc(s)
Technical specifications
- Suitable for single wire cross sections of 0.2-4 mm²
- Suitable for wire cross-sections of fine wire with wire-end sleeves from 0.25 to 2.5 mm²
- Suitable for wire cross-section of without wire-end sleeves: 0.2-4 mm²
- Multiple wire cross-section that can be connected: 4-4 mm²
- Connection type conductor: Spring-loaded connector
- Type of connection PCB: Solder connection
- Number of electrical connections: 8
- Number of floors: 1
- Tape type: Cardboard (for SMD)
- Type of PCB mounting: Connection contact
- Mounting type: Soldering
- Dimensioning surge voltage: 4 kV
- Rated current In:24 A.
- Operating temperature 40 to 105 °C.
- Flammability class of insulation material according to UL94: V0
- Diameter connection pin 1.3 mm
- Length of the pin 3.5 mm
- Grid dimension of the connections 5 mm
- Pollution level: 2
- Material of the connection surface: Tin
- Material of the insulating body: Other
- Over voltage category III
- Type
LPT 2,5/ 8-5,0
- Product type
PCB terminal
- CS
5 mm
- No. of rows
1
- Pins per row
8
- Number of pins
8
- Connection
Spring-loaded connector
- Nominal current
24 A
- Cross section (flexible) (min.)
0.2 mm²
- Nominal current - rounded value
24 A
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
4 mm²
- Contact material
Tin
- Factory colour
Green
- Manufacturer part #
1190304
- Content
50 pc(s)
- Height
20.24 mm
- Case colour
Green
- Rated voltage
400 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3565646 Phoenix Contact 1190304 PCB terminal 4 mm² Number of pins 8 Green 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3565646 Phoenix Contact 1190304 PCB terminal 4 mm² Number of pins 8 Green 50 pc(s)
Description
Conductor board terminal, rated current: 24 A, rated voltage (III/2): 400 V, nominal cross-section: 2.5 mm², number of potentials: 8, number of rows: 1, number of poles per row: 8, product family: LPT 2.5/, grid dimension: 5 mm, connection type: Lever-push-in connection, mounting: Shaft soldering, Connection direction of conductor/board: 0°, color: green, pin layout: linear pinning, pin length [P]: 3.5 mm, packing type: packed in carton
