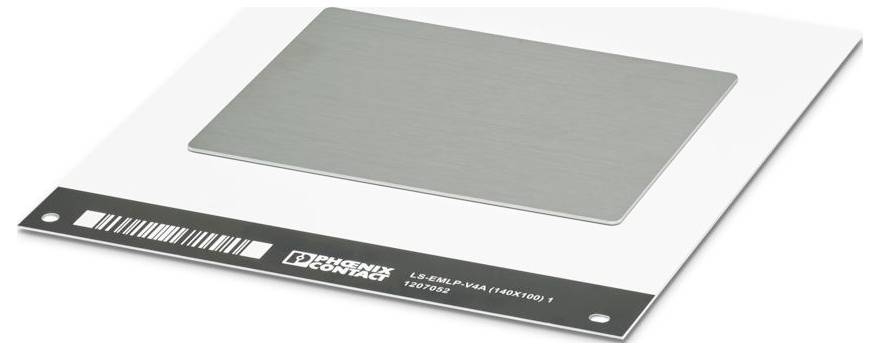

Image similar
Phoenix Contact 1207052 LS-EMLP-V4A (140X100) 1 Device markers Fitting type: Adhesive Writing area: 100 x 140 mm Silver
Product type
Device markers
Fitting type
Adhesive
Writing area length
100 mm
Writing area width
140 mm
Type
LS-EMLP-V4A (140X100) 1
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Width: 140.00 mm
- Height: 100.00 mm
- Depth: 1.25 mm
- Colour: Silver
- Ambient conditions: Environmental conditions
- Ambient temperature (operation): -40 °C ... 250 °C
- Mounting type: Glue
- Text field: Text field
- Text field width 140 mm
- Text field height 100 mm
- MATERIAL: V4A (1.4404 | AISI 316L)
- Material base element: V4A (1.4404 | AISI 316L)
- Temperature storage: Temperature storage
- IEC 60068-2-11 (VDE 0468-2-11):2022-10
- Result: Test passed
- Procedure: Method B.
- Duration: 240 hrs
- Test temperature 250 °C
- Recommended ambient temperature (storage/transport): 23°C.
- Recommended humidity (storage/transport): 50%
- Shelf life: 12 months
- RoHS-compliant: Yes
- Adhesive: Acrylic
- Ingredients: Free of silicone, halogen and cadmium
- Test for substances interfering with paint wetting: Test for substances interfering with paint wetting
- Test for paint wetting interference (LABS conformity): VDMA 24364-A1-L:2018-05
- UV resistance: UV resistance
- Test duration 168 h
- Testing in the condensation changing climate with atmosphere containing sulfur dioxide: Testing in the condensation changing climate with atmosphere containing sulfur dioxide
- Cycles: 2
- Salt mist test: Salt mist test
- Recommended storage conditions: 23 °C / 50 % relative humidity. It is recommended to store the device in a dry and dark place in the original packaging.
- Temperature resistance: Temperature resistance
- Resistance to chemicals, oils and fuels: Resistance to chemicals, oils and fuels
- Sodium hydroxide 0.1 mol/l
- [CAS No. 1310-73-2]: Test passed
- Salt water (350 g/l)
- [CAS No. - ]: Test passed
- Ethanol (99 %)
- [CAS No. 64-17-5]: Test passed
- IRM 901: Test passed
- IRM 902: Test passed
- IRM 903: Test passed
- Acetone (99 %)
- [CAS No. 67-64-1]: Test passed
- WIPING RESISTANCE DIN EN 61010-1 (VDE 0411-1)
- Labelling: Labelling
- Labelling technology: Laser direct labeling
- Strength adhesive 250 µm
- Scratch test for determining scratch resistance: Scratch test for determining scratch resistance
- Tesafilm Test: Tesafilm Test
- Drums are smear-proof and resistant to marking
- Isopropanol
- [CAS No. 67-63-0]: Test passed
- N-Hexane
- [CAS No. 110-54-3]: Test passed
- Water + petroleum ether
- [CAS No. 64742-82-1]: Test passed
- Number of single plates: 1
- Rating 225 °C (250 °C): Passed test
- Type
LS-EMLP-V4A (140X100) 1
- Product type
Device markers
- Fitting type
Adhesive
- Writing area length
100 mm
- Writing area width
140 mm
- Writing area
100 x 140 mm
- Material
Stainless steel V4A
- Factory colour
Silver
- No. of markers
1
- Dim
(W x H) 140 mm x 100 mm
- Type
Blank, laser direct inscription
- Content
5 pc(s)
- Width
140 mm
- Height
100 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3566243 Phoenix Contact 1207052 LS-EMLP-V4A (140X100) 1 Device markers Fitting type: Adhesive Writing area: 100 x 140 mm Silver
User & Safety Instructions
User & Safety Instructions 3566243 Phoenix Contact 1207052 LS-EMLP-V4A (140X100) 1 Device markers Fitting type: Adhesive Writing area: 100 x 140 mm Silver
Description
Device marker, stainless steel plate, silver-colored, unlabeled , can be labeled with: Topmarker NEO, TopMARK LASER, Mounting type: adhesive, Number of individual plates: 1, Height of text field: 100 mm, Text field width: 140 mm
