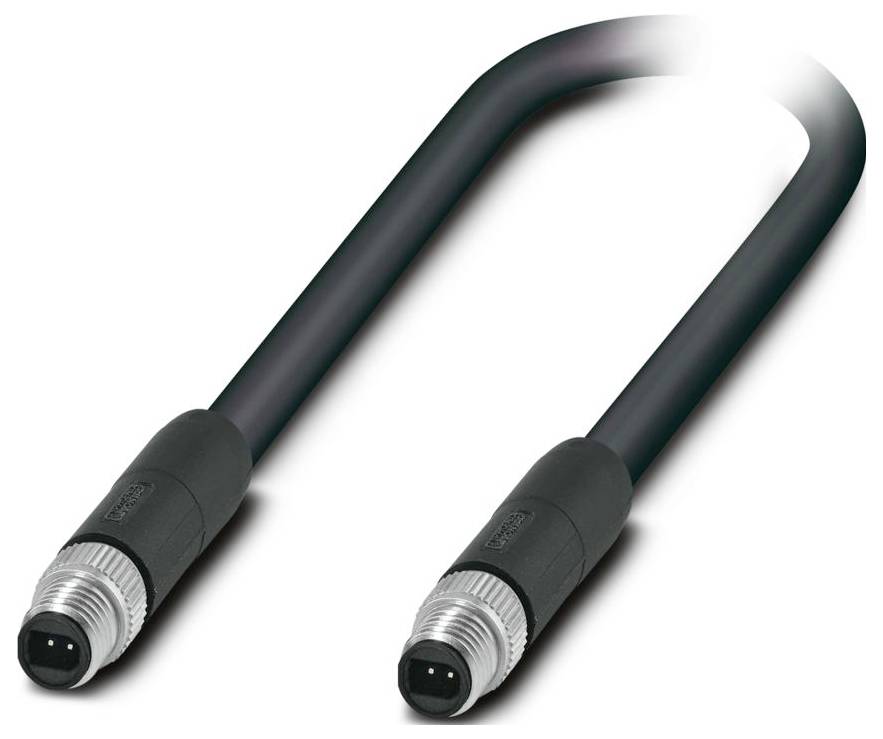

Phoenix Contact 1217526 Cable connection M8 2 m No. of pins (RJ): 2 1 pc(s)
Product type
Cable connection
Connector standard
Ethernet
Connection side A
M8 plug, straight
Connection side B
M8 plug, straight
No. of pins
2
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Number of poles: 2
- NOMINAL VOLTAGE 48 V AC;60 V DC
- Tightening torque 0.2 Nm
- Flammability class according to UL 94: V0
- Ambient conditions: Environmental conditions
- Protection class IP65;IP67
- Ambient temperature (operation): -20 °C ... 80 °C (Cable, fixed installation)
- Standards/regulations: IEC 63171-5
- Note T1-SPE
- Insulation properties: Insulation properties
- Overvoltage category II
- Pollution level 3
- Material seal FKM
- Material contact surface Ni/Au
- Cable outside diameter 5.10 mm ±0.2 mm
- Bus system: Ethernet
- Outer sheath, material: PVC
- Material conductor: Tin-plated Cu-strand
- Cable length 2 m
- Cable cross-section: 2x 0.34 mm²
- Shielding: Advanced shielding technology
- M8 connector standard
- Status display: No.
- Outer sheath, color: Black
- Application: Standard
- Transfer medium: Copper
- Insulation resistance: ≥ 5 GΩ*km.
- Material contact: Copper
- Pin assignment: Connection assignment
- Status display available: No.
- Material contact carrier: PP
- UL AWM STYLE 2095 (80 °C / 300 V)
- Shielded: Yes
- Cable type: Single Pair Ethernet PVC flexible black [97B]
- Conductor construction signal line: 7x
- AWG signal cable 22
- Wire diameter including insulation: 1.65 mm
- Material wire insulation: Foamed PE
- Single wire, color: White, blue
- Wall thickness outer sheath 0.55 mm
- Complete stranding: 1 pairs with fillers longitudinally stranded
- Nominal voltage 300 V for cable
- Minimum bend radius, fixed 4 x D
- Minimum bend radius, 21 mm fixed installation
- Flame resistance: According to FT-2
- Number of cable outlets: 1
- Mating cycles ≥ 100
- Track 1: Track 1
- Track 2: Track 2
- Conductor resistance max.: ≤ 59.4 Ω/km.
- Conductor stranding 1 x 2 x AWG 22/7, S/FTP
- Optical Shield Cover 80%
- Surge impedance 100 Ω 15 Ω ±(at 20 MHz)
- M8
- Pair stranding: 2 wires to pair
- Material of grip body: TPU, flame retardant, self extinguishing
- Material: Die-cast zinc, nickel-plated
- Sensor type: Single pair Ethernet
- Signal type/category: Single pair Ethernet CAT B (IEC 63171)
- Data transfer rate: Up to 10 Mbit/s.
- Dimensional drawing: Polar pattern single pair Ethernet, 2-pin
- Design: M8 plug, straight, 2-pin, shielded (Advanced Shielding Technology), coding: SPE
- Contact | Colour (Signal designation) | Contact (optional): 1 | WH (RX/TX+) | 1;2 | BU (RX/TX-) | 2
- Single Pair Ethernet PVC flexible black [97B]: Single Pair Ethernet PVC flexible black [97B]
- Type
SPE-T1-M8MSM/2,0-97B/M8MSM
- Product type
Cable connection
- Connector standard
Ethernet
- Connection side A
M8 plug, straight
- Connection side B
M8 plug, straight
- No. of pins
2
- Cable length
2 m
- Jacket material
PVC
- Nominal voltage
48 V AC
60 V DC
- Outside Ø
5.10 mm
- Connection
M8 plug
- Thread type connection side
M8
- Thread type (wiring and installation)
M8
- Cable colour
Black
- Contact material
Copper
- Contact surface
Ni/Au
IP65
IP67
- Features
Shielded
- Min. temperature
-20 °C
- Max. temperature
80 °C
- Manufacturer part #
1217526
- Content
1 pc(s)
- Cable Ø
5.10 mm
- Cable Ø (max.)
5.30 mm
- Cable Ø up to
4.90 mm
- Cable Ø range
4.90 - 5.30 mm
- Rated voltage
48 V
- Shielded
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3566670 Phoenix Contact 1217526 Cable connection M8 2 m No. of pins (RJ): 2 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3566670 Phoenix Contact 1217526 Cable connection M8 2 m No. of pins (RJ): 2 1 pc(s)
Description
Network cable, single pair Ethernet CAT A (10 MBit/s), 2-pin, PVC, black, shielded (Advanced Shielding Technology), straight plug M8-SPE / IP67, on straight plug M8-SPE / IP67, cable length 2 m
