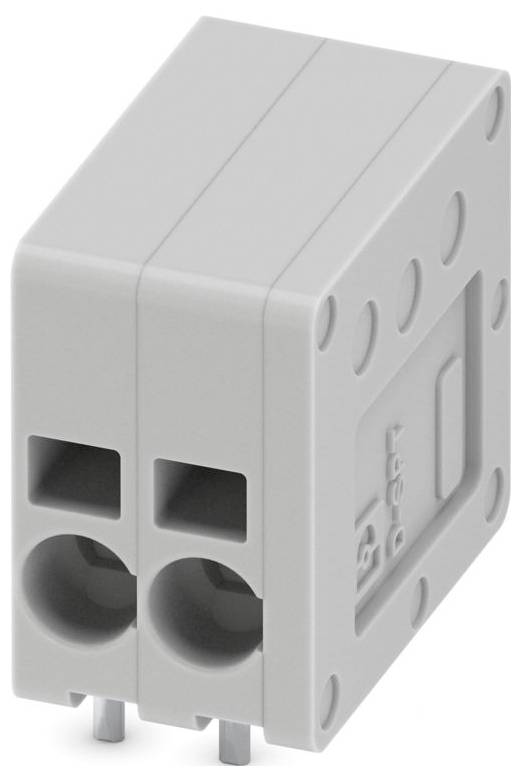

Phoenix Contact 1228486 PCB terminal 1.5 mm² Number of pins 2 Grey 340 pc(s)
Product type
PCB terminal
CS
3.5 mm
Pins per row
2
Number of pins
2
Connection
Push-in spring-loaded terminal
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Wire cross-section with single wire connections: 0.2-1.5 mm²
- Suitable for wire cross-sections of fine wire with wire-end sleeves from 0.25 to 0.75 mm²
- Suitable for wire cross-sections of fine wire without wire-end sleeves: 0.2-1.5 mm²
- Multiple wire cross-section that can be connected: 1.5-1.5 mm²
- Connection type conductor: Spring-loaded connector
- Type of connection PCB: Solder connection
- Number of floors: 1
- Tape type: Cardboard (for SMD)
- Dimensioning surge voltage: 2.5 kV
- Rated current In:17.5 A.
- Operating temperature 40 to 105 °C.
- Flammability class of insulation material according to UL94: V0
- Diameter connection pin 1.2 mm
- Length of the pin 2.5 mm
- Grid dimension of the connections 3.5 mm
- Pollution level: 2
- Material of the connection surface: Tin
- Material of the insulating body: Other
- Over voltage category III
- Type
SPT 1,5/ 2-H-3,5 GY
- Product type
PCB terminal
- Features
+ push-in spring bracket
- CS
3.5 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Series
SPT
- Connection
Push-in spring-loaded terminal
- Nominal current
17.5 A
- Cross section (flexible) (min.)
0.2 mm²
- Nominal current - rounded value
17.5 A
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- Contact material
Tin
- Factory colour
Grey
- Manufacturer part #
1228486
- Content
340 pc(s)
- Height
16 mm
- Case colour
Grey
- Rated voltage
200 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3566840 Phoenix Contact 1228486 PCB terminal 1.5 mm² Number of pins 2 Grey 340 pc(s)
User & Safety Instructions
User & Safety Instructions 3566840 Phoenix Contact 1228486 PCB terminal 1.5 mm² Number of pins 2 Grey 340 pc(s)
Description
Conductor board terminal, rated current: 17.5 A, rated voltage (III/2): 200 V, nominal cross-section: 1.5 mm², number of rows: 1, number of poles per row: 2, product family: SPT 1.5/..-H, pitch: 3.5 mm, connection type: Push-in spring connection, assembly: Shaft soldering, Connection direction of conductor/board: 0°, color: gray, pin layout: linear pinning, pin length [P]: 2.5 mm, number of soldering pins per potential: 2, packing type: packed in carton
