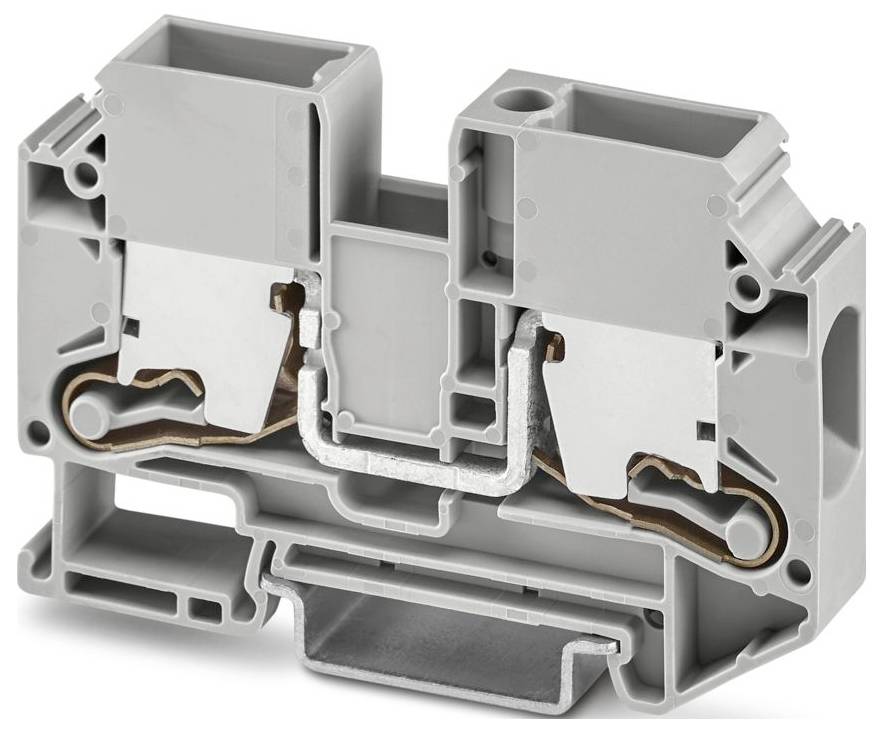

Phoenix Contact 1329672 Continuity Push-in connector Grey 1 pc(s) Piece
Packaging type
Piece
Product type
Continuity
Connection
Push-in connector
Cross section (flexible) (max.)
25 mm²
Cross section (inflexible) (max.)
25 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Continuity
- Features
built-in jumper
- Connection
Push-in connector
- Cross section (flexible) (min.)
4 mm²
- Cross section (flexible) (max.)
25 mm²
- Cross section (inflexible) (min.)
2.5 mm²
- Cross section (inflexible) (max.)
25 mm²
- Pins per row
1
- Number of pins
1
- Factory colour
Grey
- Nominal current
76 A
- Nominal current - rounded value
76 A
- Nominal voltage
1000 V
- Manufacturer part #
1329672
- Content
1 pc(s)
- Type
XTV 16
- Dim
(L x W x H) 77.2 x 12.2 x 77.2 mm
- Width
12.2 mm
- Height
77.2 mm
- Length
77.2 mm
- Weight
0.0443 kg
- Flammability rating
V0
- Depth
49.8 mm
- UKCA
yes
