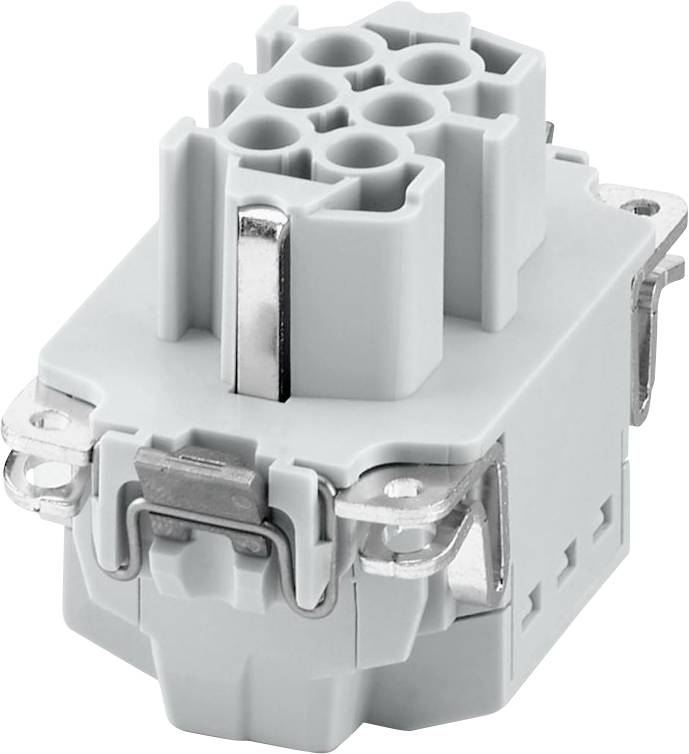

Phoenix Contact 1350024 Connector insert Socket Total number of pins: 6 + PE Piece 1 pc(s)
Product type
Connector insert
Connector type
Socket
Total no. of pins
6 + PE
Connection
Spring-loaded connector
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type
HC-B06-I-PT-CI-F
- Product type
Connector insert
- Connector type
Socket
- Total no. of pins
6 + PE
- Connection
Spring-loaded connector
- Content
1 pc(s)
- Max. temperature
125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
- Case material
Thermoplastic
- Manufacturer part #
1350024
- Insulation material
Thermoplastic
- Number of pins
6
- Width
34 mm
- Height
37 mm
- Depth
50.5 mm
- max. cross section
2.5 mm²
- Min. cross section
0.14 mm²
- Cross-section range
0.14 - 2.5 mm²
- Pin diameter
2.5 mm
- Packaging type
Piece
- UKCA
yes
