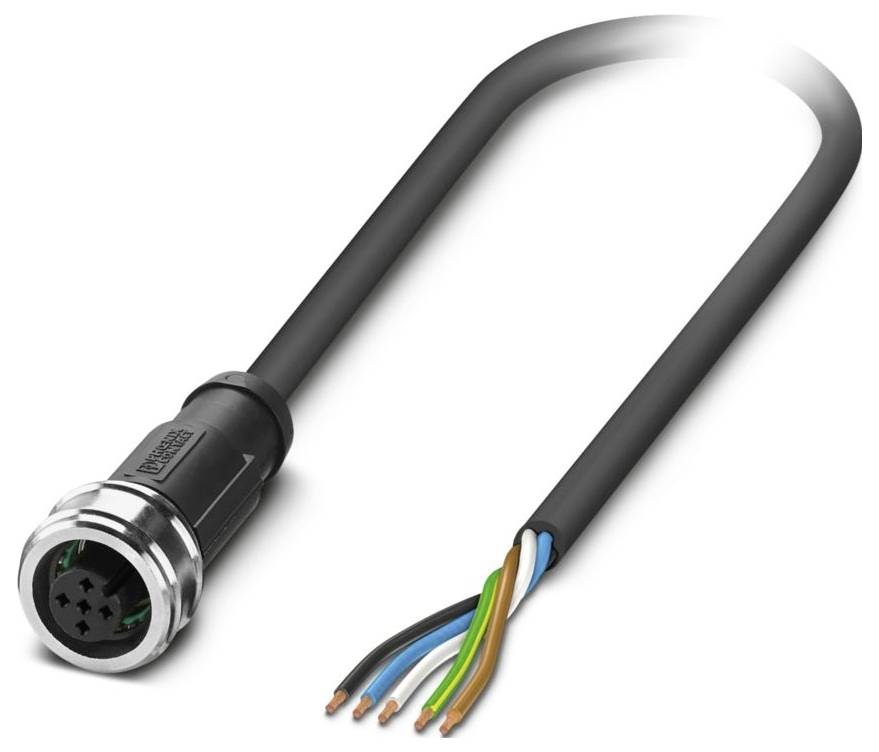

Phoenix Contact 1395827 Sensor/actuator cable M12 10 m No. of pins (RJ): 5 1 pc(s)
Product type
Sensor/actuator cable
Connector standard
Sensor connector
Connection side A
Cable, open end
Connection side B
M12 socket, straight
No. of pins
5
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Design: Straight socket M12 Push-Pull
- Number of pins: 5
- NOMINAL VOLTAGE 48 V AC;60 V DC
- Flammability class according to UL 94: V0
- Mechanical Data: Mechanical Data
- Ambient conditions: Environmental conditions
- Protection class IP65;IP67
- Ambient temperature (operation): -40 °C ... 80 °C (cable, fixed installation);-25 °C ... 80 °C (cable, moving laying)
- Standards/regulations: IEC 61076-2-010
- Insulation properties: Insulation properties
- Overvoltage category II
- Pollution level 3
- Material seal FKM
- Material contact surface Ni/Au
- Nominal current IN: 4 A
- Material PA (contact carrier socket)
- Cable outside diameter 4.55 mm ±0.15 mm
- Outer sheath, material: PUR
- Material conductor: Plain Cu stranded conductor
- 10 m conductor length
- Cable cross-section: 5x 0.34 mm² (signal line)
- Standard designation M12 push-pull
- Status display: No.
- Outer sheath, color: Black gray RAL 7021
- Application: Standard
- Other stability: Good resistance to acids, bases and solvents; hydrolysis and microbes resistant; resistant to seawater; resistant to UV resistant (according to DIN EN ISO 4892-2-A)
- Coding: A
- Lock type: Push-pull
- Insulation resistance: ≥ 16 GΩ*km (at 20 °C)
- Material contact: CuSn
- Test voltage: 3000 V
- Status display available: No.
- Cable weight: 33 kg/km.
- UL AWM Style 20549
- Shielded: No.
- Line type: PUR halogen-free black [PUR]
- Conductor construction signal line: 42x 0.10 mm
- AWG signal cable 22
- Wire diameter including insulation: 1.27 mm 0.05 mm (signal line)
- Material wire insulation: PP
- Single wire, color: Brown, white, blue, black, green/yellow
- Nominal voltage 300 V for cable
- Minimum bend radius, 23 mm fixed installation
- Minimum bend radius, movable 46 mm
- Dynamic load carrying capacity (bending): Maximum bending cycles: 10000000, bending radius: 46 mm, bending radius: 10 x D, traverse path: 10 m, travel speed: 3 m/s, acceleration: 10 m/s²
- Flame resistance: According to UL 758/1581 FT2;DIN EN 60332-2-2 (20 s)
- Oil resistance: According to DIN EN 60811-2-1
- Special properties: Suitable for drag chains, silicone-free, free of substances interfering with paint wetting; flexible
- Number of cable outlets: 1
- Mating cycles ≥ 100
- Track 1: Track 1
- Coding type A
- Track 2: Track 2
- Wall thickness insulation: Approx. 0.50 mm
- Conductor resistance max.: 58 Ω/km (at 20 °C)
- PUR halogen-free black [PUR]: PUR halogen-free black [PUR]
- Halogen-free: According to DIN VDE 0472 part 815
- Dynamic load carrying capacity (torsion): Torsion: ±180 °/m, torsion cycles: ≥2000000, torsion frequency: 35 cycles/min.
- Material of grip body: TPU, flame retardant, self extinguishing
- Material: Brass, nickel-plated
- Ambient temperature (operation) (plug/socket): -25 °C ... 85 °C (plug/socket)
- Type
SAC-5P-10,0-PUR/P12FS
- Product type
Sensor/actuator cable
- Connector standard
Sensor connector
- Connection side A
Cable, open end
- Connection side B
M12 socket, straight
- No. of pins
5
- Cable length
10 m
- Jacket material
PUR
- Nominal voltage
48 V AC
60 V DC
- Connector cross-section (max.)
0.34 mm²
- Outside Ø
4.55 mm
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Connection
Socket
- Thread type connection side
M12
- Cable colour
Black grey (RAL 7021)
- Coding
A
- Contact material
CuSn
- Contact surface
Ni/Au
- max. cross section
0.34 mm²
IP65
IP67
- Features
Halogen-free
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Seal type
Push-Pull
- Manufacturer part #
1395827
- Content
1 pc(s)
- Cable Ø
4.55 mm
- Cable Ø (max.)
4.55 mm
- Cable Ø range
4.55 mm (max)
- Rated voltage
48 V
- Shielded
No
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3585801 Phoenix Contact 1395827 Sensor/actuator cable M12 10 m No. of pins (RJ): 5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3585801 Phoenix Contact 1395827 Sensor/actuator cable M12 10 m No. of pins (RJ): 5 1 pc(s)
Description
Sensor/actuator cable, 5-pin, PUR halogen-free, black gray RAL 7021, free cable end, push-pull on socket M12 straight, coding: A, cable length: 10 m.
