Phoenix Contact 1404548 Switchboard grommet Socket, straight No. of pins (RJ): 8 1 pc(s)

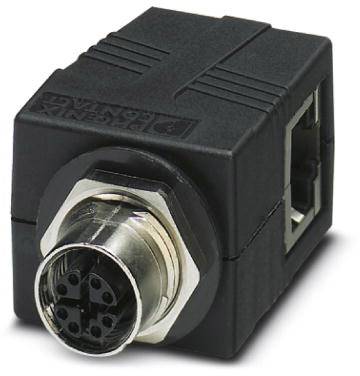

A black adaptor plug with a metal thread and multiple connection points, suitable for connecting electrical devices.

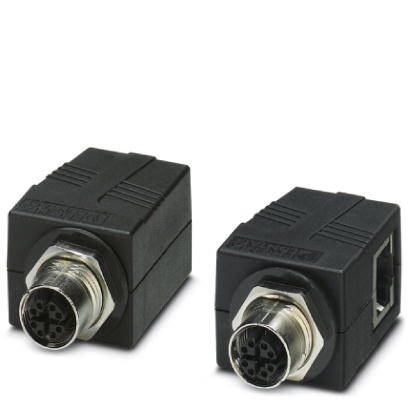

Two black adapters with different connections, one with a round end on the left and a square end on the right, set against a white background.

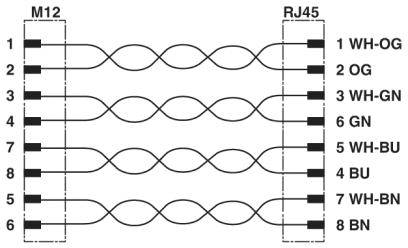

Wiring diagram shows the pin assignment from M12 to RJ45: 1 to 1 (WH-OG), 2 to 2 (OG), 3 to 3 (WH-GN), etc. Suitable for network connections.

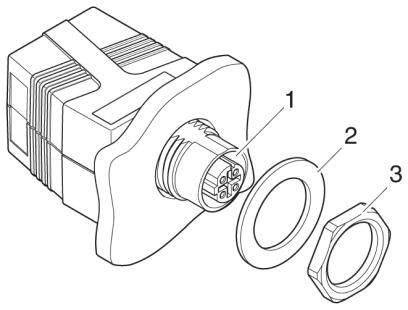

Electrical connector with three marked components: 1 is the plug, 2 the seal, 3 the nut for fastening.

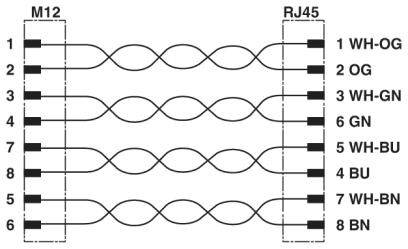

'Diagram of an M12 to RJ45 cabling. Shows corresponding pin assignments between connectors: WH-OG, OG, WH-GN, GN, WH-BU, BU, WH-BN, BN.'

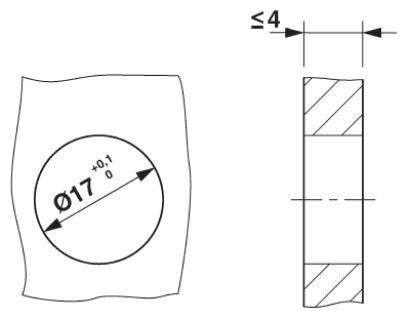

Technical drawing of a component: A circle with a diameter of 17 mm (+0.1/0) and a maximum thickness of 4 mm.

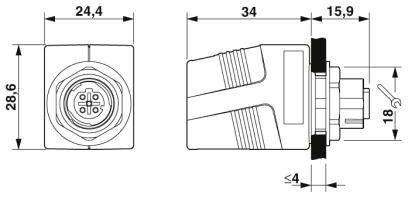

'Technical drawing of a connector with dimensions: 24.4 mm x 28.6 mm and 34 mm depth. Detailed side view and top view.'
1/7
Image similar
Product type
Switchboard grommet
Connector type
Socket, straight
Connection side A
M12 socket, straight
Connection side B
RJ45 socket
No. of pins
8
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Flammability class according to UL 94: V0
Type

VS-BH-M12FSX-10G-RJ45/90

Product type

Switchboard grommet

Connector type

Socket, straight

Connection side A

M12 socket, straight

Connection side B

RJ45 socket

No. of pins

8

Nominal voltage

48 V

Nominal current

0.5 A

Nominal current - rounded value

500 mA

Coding

X

Contact material

Copper alloy

IP65

Min. temperature

-25 °C

Max. temperature

+85 °C

Manufacturer part #

1404548

Content

1 pc(s)

RoHS-compliant

Yes

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2136560 Phoenix Contact 1404548 Switchboard grommet Socket, straight No. of pins (RJ): 8 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2136560 Phoenix Contact 1404548 Switchboard grommet Socket, straight No. of pins (RJ): 8 1 pc(s)

Description

IP65/67. UL.

This text is machine translated.
