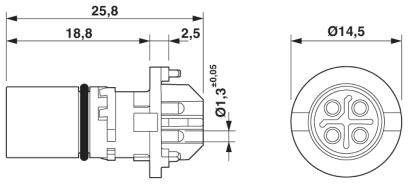

Image similar
Phoenix Contact 1406410 DIN connector Plug, straight Total number of pins: 4 20 pc(s)
Product type
DIN connector
Connector type
Plug, straight
Total no. of pins
4
Connection
THR
Soldering
Content
20 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Mating cycles: 100
- Material contact carrier: PA4T
- Flammability class according to UL 94: V0
- Over voltage category III
- Pollution level 3
- Material seal: FKM
- Insulation resistance ≥ 100 MΩ

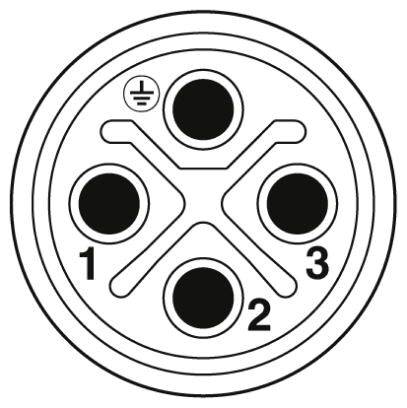

- Coding: S - Power
- Standards/regulations: M12-plug connector IEC 61076-2-111 according to
- Type
SACC-CI-M12MSS-4CON-L180 THR PE
- Product type
DIN connector
- Connector type
Plug, straight
- Total no. of pins
4
- Connection
THR
Soldering
- Content
20 pc(s)
- Max. temperature
+105 °C
- Min. temperature
-25 °C
- Mounting type
PCB mounting
- Contact material
CuZn
- Manufacturer part #
1406410
- Number of pins
4
IP67
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209152 Phoenix Contact 1406410 DIN connector Plug, straight Total number of pins: 4 20 pc(s)
Datasheet 2209152 Phoenix Contact 1406410 DIN connector Plug, straight Total number of pins: 4 20 pc(s)
User & Safety Instructions
User & Safety Instructions 2209152 Phoenix Contact 1406410 DIN connector Plug, straight Total number of pins: 4 20 pc(s)
Description
For compact devices: Transfer high performance in a small space. Reduced assembly costs thanks to two-part device connector. All common pin pictures and coding available. Simple device integration through mechanical port screw connections with thread fixing, press-in contour or for direct integration into the front plate. Additional sealing to the device in unmated condition. Packaging for automated pick-and-place assembly available.
