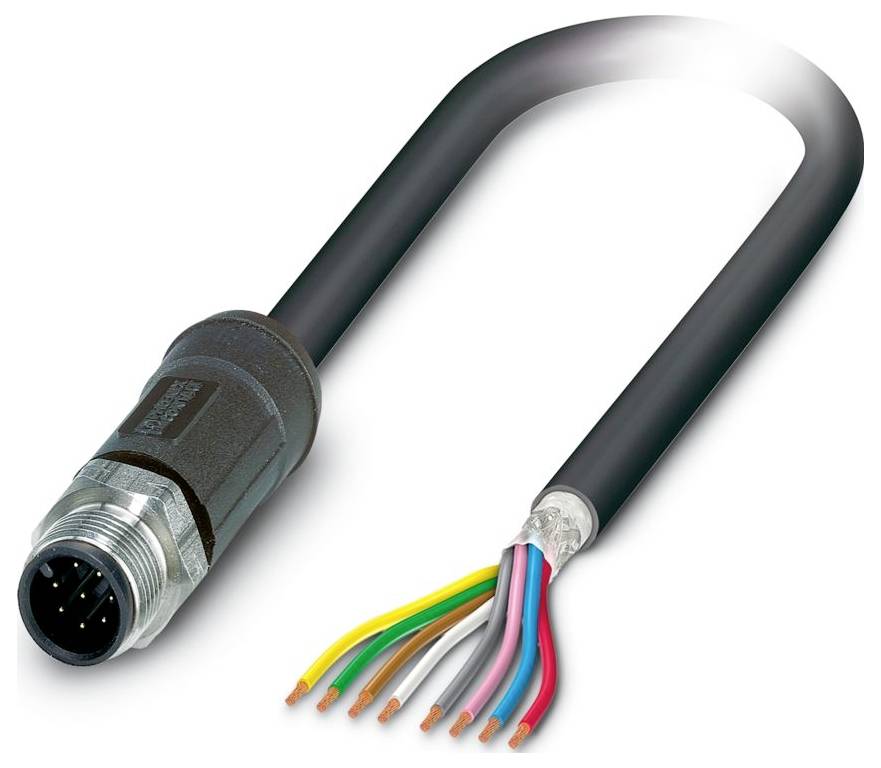

Phoenix Contact 1407280 Sensor/actuator cable M12 5 m No. of pins (RJ): 8 1 pc(s)
Product type
Sensor/actuator cable
Connection side A
M12 plug, straight
Connection side B
Cable, open end
No. of pins
8
Cable length
5 m
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Design: Free cable end
- Number of pins: 8
- NOMINAL VOLTAGE 30 V AC;30 V DC
- Tightening torque 0.4 Nm (M12 connector)
- Flammability class according to UL 94: V0
- Mechanical Data: Mechanical Data
- Ambient conditions: Environmental conditions
- PROTECTION CLASS IP65;IP67;IP68;IP69K
- Ambient temperature (operation): -40 °C ... 105 °C (cable, fixed installation);-15 °C ... 105°C (Cable, Moving);20°C ±5 °C (Cable, Drag Chain Insert)
- Standards/regulations: IEC 61076-2-101
- Insulation properties: Insulation properties
- Pollution level 3
- Material contact surface Ni/Au
- Nominal current IN: 2 A
- Cable outside diameter 7.25 mm ±0.3 mm
- Outer sheath, material:PE-X
- Material conductor: Plain Cu stranded conductor
- Cable length 5 m
- Cable cross-section: 8x 0.25 mm²
- Wire connection: Conductor connection
- M12 connector
- Status display: No.
- Outer sheath, color: Black gray RAL 7021
- Application: Outdoor areas
- Other resistance: Resistant to fuels (according to IEC 60811, 168 h at 70 °C);UV-resistant (according to DIN VDE 0276-605)
- Coding: A
- Insulation resistance: ≥ 100 MΩ*km (at 20 °C)
- Material contact: CuSn
- Testing voltage ≥ 3000 V AC (Spark Test)
- Status display available: No.
- Material contact carrier: PP
- Cable weight: 81 kg/km.
- Shielded: Yes
- Cable type: PE-X black [28X]
- Conductor construction signal line: 32x 0.10 mm
- AWG signal cable 24
- Wire diameter including insulation: 1.17 mm ±0.02 mm
- Material insulation: PE-X
- Single wire, color: White, brown, green, yellow, gray, pink, blue, red
- Wall thickness inner sheath: Approx. 0.50 mm
- Wall thickness outer sheath: Approx. 0.70 mm
- Complete stranding: 8 veins around filler to the soul
- Nominal voltage cable: ≤ 300 V AC
- Minimum bend radius, fixed 5 x D
- Minimum bend radius, flexibly laid: 10 x D
- Minimum bend radius, 37 mm fixed installation
- Minimum bend radius, movable 73 mm
- Dynamic load carrying capacity (bending): Maximum bending cycles: 1000000, bending radius: 10 x D, traverse path: 10 m, traverse speed: 3 m/s, acceleration: 10 m/s²
- Flame resistance: According to DIN EN 60332-1-2;according to DIN EN 50266-2-5
- Oil resistance: According to DIN EN 60811-2-1, 168 h at 100 ° C; according to DIN EN 50306
- Special properties: Inductivity approx. 0.48 mH/km;radiation cross-linked
- Number of cable outlets: 1
- Mating cycles ≥ 100
- Track 1: Track 1
- Coding type A
- Track 2: Track 2
- Wall thickness insulation: Approx. 0.25 mm (wire insulation)
- Conductor resistance max.: ≤ 78 Ω/km (at 20 °C)
- Halogen freedom: According to DIN VDE 0472 part 815; according to DIN EN 50267-2-1
- M12
- Optical Shield Cover 85%
- Testing voltage wire/shield: ≥ 1000.00 V AC (for 10 s)
- Material Gripp: PP
- Material: Stainless steel screw connection
- Ambient temperature (operation) (plug/socket): -40 °C ... 105 °C (plug/socket)
- Operating capacity: Approx. 80 pF (core core);approx. 125 pF (core shield)
- Material filler: PP thread
- Total twisting length 67 mm
- PE-X BLACK [28X]: PE-X BLACK [28X]
- Ambient temperature (operation) (operation): -40 °C ... 85 °C (at rapid temperature changes (according to IEC 60512-11-4))
- Type
SAC-8P-M12MS/ 5,0-28X SH OD
- Product type
Sensor/actuator cable
- Connection side A
M12 plug, straight
- Connection side B
Cable, open end
- No. of pins
8
- Cable length
5 m
- Jacket material
PE-X
- Nominal voltage
30 V AC
30 V DC
- Outside Ø
7.25 mm
- Cross-section (sensor/actuator wiring)
0.25 mm²
- Connection
Open cable end
- Thread type connection side
M12
- Cable colour
Black grey (RAL 7021)
- Coding
A
- Contact material
CuSn
- Contact surface
Ni/Au
IP65
IP67
IP68
IP69K
- Features
Halogen-free
Shielded
- Min. temperature
-40 °C
- Max. temperature
105 °C
- Manufacturer part #
1407280
- Content
1 pc(s)
- Cable Ø
7.25 mm
- Cable Ø (max.)
7.25 mm
- Cable Ø range
7.25 mm (max)
- Rated voltage
30 V
- Shielded
Yes
- UKCA
yes
