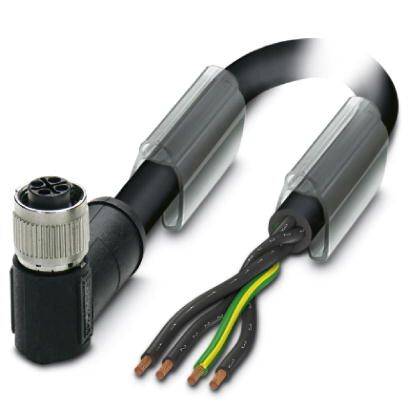

Phoenix Contact 1408854 Sensor/actuator cable M12 Socket, right angle 10.00 m No. of pins (RJ): 4 1 pc(s) Piece
Product type
Sensor/actuator cable
Connector type
Socket, right angle
Connection side A
Cable, open end
Connection side B
M12 socket, right angle
No. of pins
4
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Standards/regulations: M12 plug connector IEC 61076-2-111
- Insulation resistance ≥ 100 MΩ
- Mating cycles: 100
- Tightening torque 0.4 Nm (M12 connector)

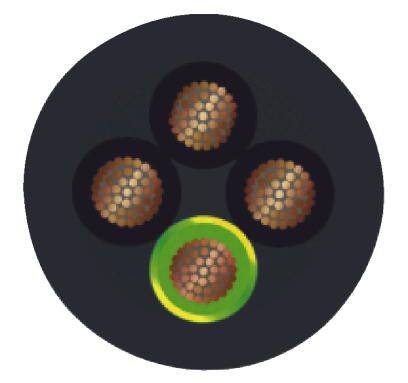

- Cable type: Pure halogen-free black
- Cable type (short code): PUR
- AWG power supply: 16
- Outer sheath, color: Black gray RAL 7021
- Number of bending cycles: 2000000
- Travel distance: 10 m.
- Travel speed 3 m/s
- Acceleration: 10 m/s²
- Material conductor: Bare copper wire
- Pollution level 3
- Flammability class according to UL 94: V0
- Over voltage category III
- Material grip body: PP
- Material knurl: Die-cast zinc, nickel-plated
- Conductor resistance: ≤ 13 Ω/km (at 20 °C)
- Packaging type
Piece
- Type
SAC-4P-10,0-PUR/M12FRS PE
- Product type
Sensor/actuator cable
- Connector type
Socket, right angle
- Connection side A
Cable, open end
- Connection side B
M12 socket, right angle
- No. of pins
4
- Cable length
10.00 m
- Jacket material
PUR
- Nominal voltage
690 V AC

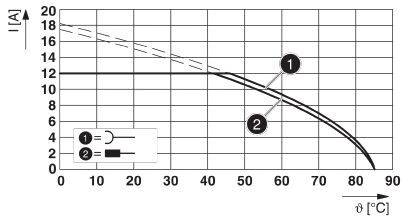

- Nominal current
12 A
- Nominal current - rounded value
12 A
- Connector cross-section (max.)
1.5 mm²
- Outside Ø
8.8 mm
- Connection
Socket
- Thread type connection side
M12
- Thread type (wiring and installation)
M12

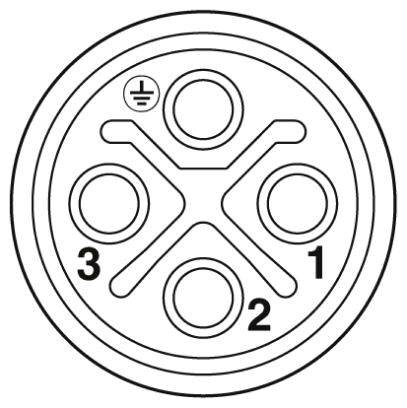

- Coding
S
- Contact material
CuZn
- Contact surface
Ni/Au
IP65
- Features
Halogen-free
- Min. temperature
-25 °C
- Max. temperature
+85 °C
- Seal type
Screw-on
- Manufacturer part #
1408854
- Content
1 pc(s)
- Cable diameter (details)
8.8 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209161 Phoenix Contact 1408854 Sensor/actuator cable M12 Socket, right angle 10.00 m No. of pins (RJ): 4 1 pc(s) Piece
Datasheet 2209161 Phoenix Contact 1408854 Sensor/actuator cable M12 Socket, right angle 10.00 m No. of pins (RJ): 4 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2209161 Phoenix Contact 1408854 Sensor/actuator cable M12 Socket, right angle 10.00 m No. of pins (RJ): 4 1 pc(s) Piece
Description
Simple and safe: 100% electrically tested pluggable components. Powerful: AC-plug connector for up to 12 A and 630 V AC. Protection against incorrect insertion by special S-coding. Our standard: The robust halogen-free PUR cable.
