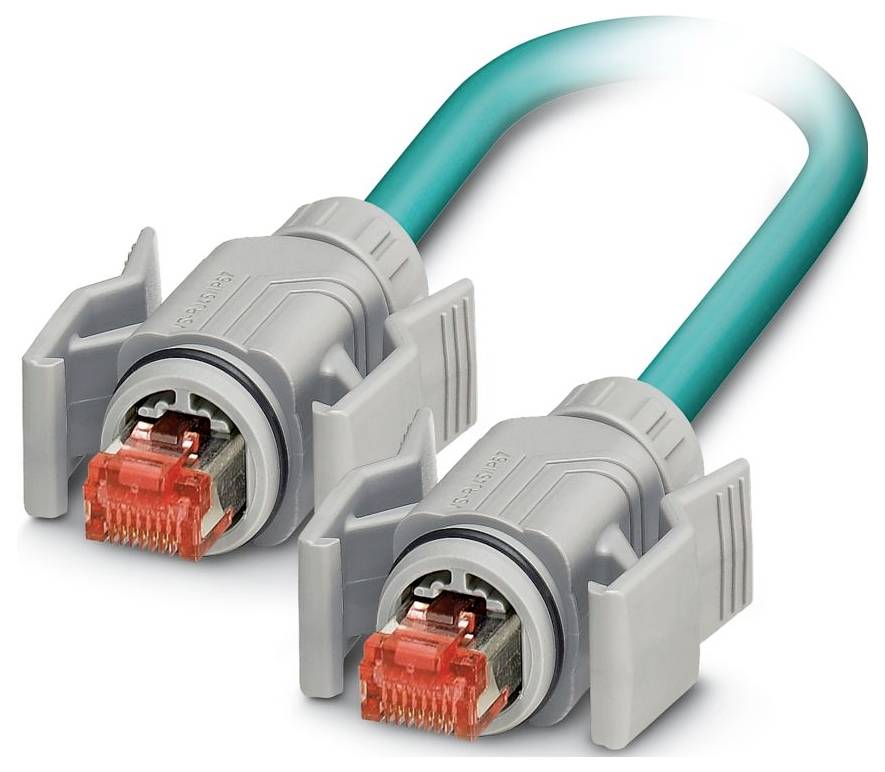

Phoenix Contact 1408956 Cable connection 2 m No. of pins (RJ): 8 1 pc(s)
Product type
Cable connection
Connector standard
Ethernet
Connection side A
RJ45 plug
Connection side B
RJ45 plug
No. of pins
8
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- PRODUCT FAMILY: RJ45 BASIC IE8 CAT5
- Number of pins: 8
- Nominal voltage UN 48 V
- Flammability class according to UL 94 V2
- Protection class IP67;IP65
- Ambient temperature (operation): -40 °C ... 80 °C (cable, fixed installation);-20 °C ... 80 °C (cable, moving laying)
- Pollution level: 2
- Material contact surface Ni/Au
- Transmission speed 1 GBit/s
- Nominal current IN: 1 A
- Cable outside diameter 6.40 mm ±0.2 mm
- Outer sheath, material: PUR
- Material conductor: Plain Cu stranded conductor
- Cable length 2.00 m
- Cable cross-section: 4x 0.14 mm 2
- RATED VOLTAGE (III/3) 72 V (DC)
- Outer sheath, color: Water blue RAL 5021
- Colour (housing): Grey
- Insulation resistance: ≥ 5 GΩ*km.
- Material contact: CuSn
- Material of contact holder: PC
- Cable weight: 47 kg/km.
- UL AWM STYLE 20963 (80 °C / 30 V)
- Shielded: Yes
- Cable type: Flexible Ethernet CAT5, 4-pair [94B]
- Conductor construction signal line: 7x 0.16 mm
- AWG signal cable 26
- Wire diameter including insulation: 0.96 mm
- Material wire insulation: Foamed PE
- Single wire, color: White/blue-blue, white/orange-orange, white/green-green, white/brown-brown
- Wall thickness outer sheath 1.05 mm
- Total stranding: 4 pairs to the soul
- Nominal voltage cable ≤ 100 V
- Minimum bend radius, fixed 4 x D
- Minimum bend radius, flexibly laid: 8 x D
- Minimum bend radius, 26 mm fixed installation
- Minimum bend radius, movable 52 mm
- Non flammable: According to IEC 60332-1-2
- Oil resistance: According to EN 60811-2-1
- Mating cycles ≥ 750
- Track 1: Track 1
- Track 2: Track 2
- Halogen-free: According to IEC 60754-1
- Conductor stranding: 4x2xAWG26/7, SF/UTP
- Optical Shield Cover 70%
- Loop impedance ≤ 290.00 Ω/km
- Surge impedance 100 Ω 5 Ω ±(at 100 MHz)
- Testing voltage wire/wire 700 V (50 Hz, 1 min.)
- Testing voltage wire/shield 700.00 V (50 Hz, 1 min.)
- Pair stranding: 2 wires to pair
- Sensor type: Ethernet
- Signal type/category: Ethernet CAT6 (IEC 11801:2002), 1 GBit/s.
- Transfer characteristics (category): CAT5 (IEC 11801:2002)
- Signal time 5.3 ns/m
- Coupling resistance ≤ 100.00 mΩ/m (at 10 MHz)
- Lead capacitance 48 nF/km (at 1 kHz)
- Tensile strength ≤ 100 N
- Close-up attenuation (NEXT): 100 dB (at 1 MHz); 62.3 dB (at 4 MHz); 56.3 dB (at 10 MHz); 53.2 dB (at 16 MHz); 51.8 dB (at 20 MHz); 48.9 dB (at 31.25 MHz); 44.4 dB (at 62.5 MHz); 41.3 dB (at 71.3 MHz)
- PSNEXT): 100 dB (at 1 MHz);53.3 dB (at 4 MHz);47.3 dB (at 10 MHz);44.2 dB (at 16 MHz);42.8 dB (at 20 MHz);39.9 dB (at 31.25 MHz);35.4 dB (at 62.5 MHz);32.3 dB (at 62.3 MHz)
- Return flow attenuation (RL): 23 dB (at 4 MHz);24.1 dB (at 21.5 MHz);25 dB (at 10 MHz);25 dB (at 16 MHz);25 dB (at 20 MHz);23.6 dB (at 31.25 MHz);8 dB (at 62.5 MHz);20.1 dB (at 100 MHz)
- Shielding attenuation: 3.2 dB (at 1 MHz);6 dB (at 24.8 MHz);9.5 dB (at 10 MHz);12.1 dB (at 16 MHz);13.6 dB (at 20 MHz);17.1 dB (at 31.25 MHz );4 dB (at 62.5 MHz);32 dB (at 100 MHz)
- Ambient temperature (laying): -20 °C ... 80 °C
- Data transfer rate up to 1 GBit/s.
- Dimensional drawing: Pole figure RJ45-plug
- Design: RJ45 plug, straight, 8-pin, locking device
- Plug-in force 30 N (per signal contact)
- Pull force 50 N (per signal contact)
- Ethernet flexible CAT5, 4-paired [94B]: Ethernet flexible CAT5, 4-paired [94B]
- Type
NBC-R4MC/2,0-94B/R4MC
- Product type
Cable connection
- Connector standard
Ethernet
- Connection side A
RJ45 plug
- Connection side B
RJ45 plug
- No. of pins
8
- Cable length
2 m
- Jacket material
PUR
- Nominal voltage
48 V
- Outside Ø
6.40 mm
- Cross-section (sensor/actuator wiring)
0.14 mm²
- Connection
RJ45
- Cable colour
Water blue
- Contact material
CuSn
- Contact surface
Ni/Au
IP67
IP65
- Features
Halogen-free
Shielded
- Min. temperature
-40 °C
- Max. temperature
80 °C
- Manufacturer part #
1408956
- Content
1 pc(s)
- Cable Ø
6.40 mm
- Cable Ø (max.)
6.40 mm
- Cable Ø range
6.40 mm (max)
- Rated voltage
48 V
- Shielded
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3586459 Phoenix Contact 1408956 Cable connection 2 m No. of pins (RJ): 8 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3586459 Phoenix Contact 1408956 Cable connection 2 m No. of pins (RJ): 8 1 pc(s)
Description
Network cable, protection class IP67, cable length: 2 m, number of poles: 8, 1 Gbit/s, CAT5, cable outlet: straight, Ethernet
