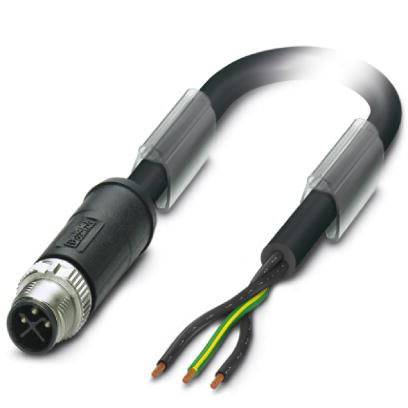

Phoenix Contact 1411637 Sensor/actuator cable M12 Plug, straight 2.00 m No. of pins (RJ): 3 1 pc(s)
Product type
Sensor/actuator cable
Connector type
Plug, straight
Connector standard
Sensor connector
Connection side A
M12 plug, straight
Connection side B
Cable, open end
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Standards/regulations: M12 plug connector IEC 61076-2-111
- Insulation resistance ≥ 100 MΩ
- Mating cycles: 100
- Tightening torque 0.4 Nm (M12 connector)

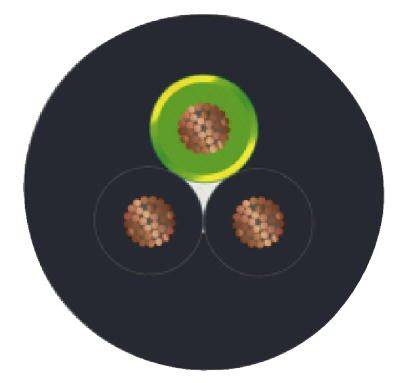

- Cable type: PVC black
- Cable type (short code): PVC
- AWG power supply: 16
- Outer sheath, color: Black
- Material conductor: Bare copper wire
- Pollution level 3
- Flammability class according to UL 94: V0
- Over voltage category III
- Material grip body: PP
- Material knurl: Die-cast zinc, nickel-plated
- Conductor resistance: ≤ 13.3 Ω/km (at 20 °C)
- Type
SAC-3P-M12MSS/ 2,0-PVC PE
- Product type
Sensor/actuator cable
- Connector type
Plug, straight
- Connector standard
Sensor connector
- Connection side A
M12 plug, straight
- Connection side B
Cable, open end
- No. of pins
3
- Cable length
2.00 m
- Jacket material
PVC
- Nominal voltage
230 V AC
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Connector cross-section (max.)
1.5 mm²
- Outside Ø
6.8 mm
- Connection
Plug
- Thread type connection side
M12

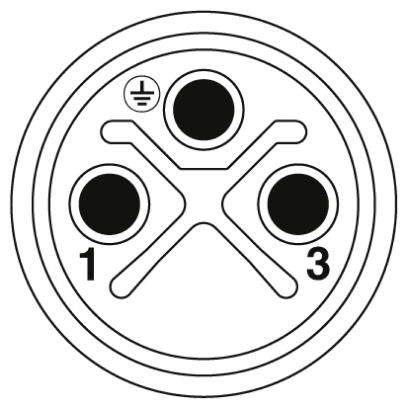

- Coding
S
- Contact material
CuZn
- Contact surface
Ni/Au
IP65
- Features
S-codiert
- Min. temperature
-25 °C
- Max. temperature
+85 °C
- Seal type
Screw-on
- Manufacturer part #
1411637
- Content
1 pc(s)
- Cable diameter (details)
6.8 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209188 Phoenix Contact 1411637 Sensor/actuator cable M12 Plug, straight 2.00 m No. of pins (RJ): 3 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2209188 Phoenix Contact 1411637 Sensor/actuator cable M12 Plug, straight 2.00 m No. of pins (RJ): 3 1 pc(s)
Description
Simple and safe: 100% electrically tested pluggable components. Powerful: AC-plug connector for up to 16 A and 230 V AC. Protection against incorrect insertion by special S-coding.
