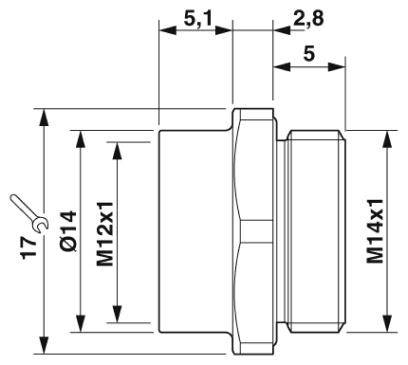

Image similar
Phoenix Contact 1412079 Flange Flange enclosure 10 pc(s)
Product type
Flange
Connector type
Flange enclosure
Type
SACC-FP-F-M12/M14 SMD
Connection
SMT
Thread type (wiring and installation)
M14
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Standards/regulations: M12-plug connector IEC 61076-2-101 according to
- Mating cycles: 100
- Tightening torque: 2 Nm ... 3 Nm (on-site)
- Material knurl: Nickel-plated brass
- Material seal: FKM (O-ring on housing)
- Mounting type: Front panel mounting M14 x 1
- Type
SACC-FP-F-M12/M14 SMD
- Product type
Flange
- Connector type
Flange enclosure
- Connection
SMT
- Thread type (wiring and installation)
M14
- Sensor/actuator connectivity fittings
Front panel fitting
IP67
- Min. temperature
-25 °C
- Max. temperature
+85 °C
- Seal type
Screw-on
- Manufacturer part #
1412079
- Content
10 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209194 Phoenix Contact 1412079 Flange Flange enclosure 10 pc(s)
Datasheet 2209194 Phoenix Contact 1412079 Flange Flange enclosure 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2209194 Phoenix Contact 1412079 Flange Flange enclosure 10 pc(s)
Description
Reduced assembly costs thanks to two-part device connector. Simple device integration through mechanical port screw connections with thread fixing. Efficient PCB mounting: Two-piece connectors for SMT soldering.
