Name: Phoenix Contact 1413993 Sensor/actuator connector M12 Plug, straight No. of pins (RJ): 4 1 pc(s) Piece
Brand: Phoenix Contact
SKU: 2209202

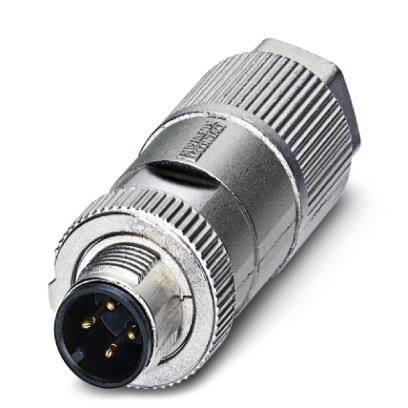

A silver, angled metal plug with four visible pins. Suitable for technical or electronic applications.

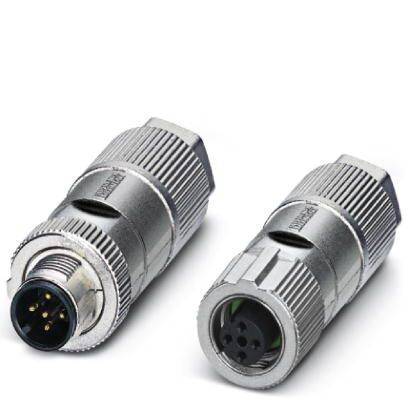

Two metallic circular connectors: on the left, a plug with visible pins, on the right, a socket. Both cylindrical and knurled.

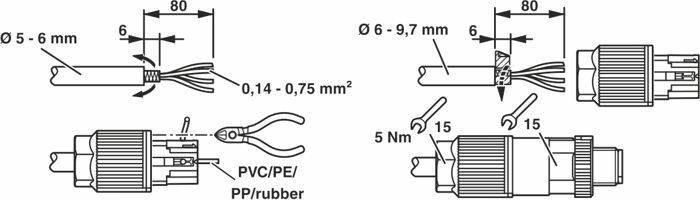

Drawing of a cable connection. Left: Cable diameter 5 to 6 mm, conductor cross-section 0.14 to 0.75 mm². Right: Cable diameter 6 to 9.7 mm, tightening torque 5 Nm.

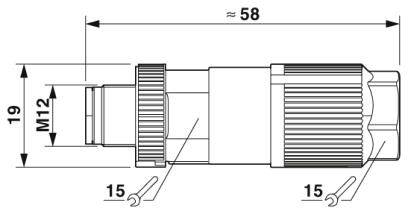

Technical drawing of a cylindrical connector with M12 thread. Total length approximately 58 mm, diameter 19 mm.

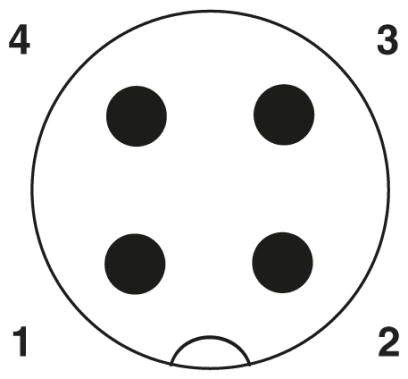

A circular plug with four numbered contacts (1, 2, 3, 4) and four corresponding sockets in a circular pattern.

1/5

Image similar

Product type

Sensor/actuator connector

Connector type

Plug, straight

Connection side A

M12 plug, straight

No. of pins

Nominal voltage

250 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Signal type/category: Universal
Standards/regulations: M12-plug connector in accordance with IEC 61076-2-101
Insulation resistance ≥ 100 MΩ
Mating cycles: ≥ 100
Tightening torque: 5 Nm (pressure nut)
Pollution level 3
Flammability class according to UL 94: V0
Overvoltage category II
Material grip body: Die-cast zinc, nickel-plated
Material knurl: Die-cast zinc, nickel-plated
Material seal: NBR

Packaging type: Piece

Type: SACC-MS-4QO-0,75 SH SCO

Product type: Sensor/actuator connector

Connector type: Plug, straight

Connection side A: M12 plug, straight

No. of pins: 4

Nominal voltage: 250 V AC

Nominal current: 4 A

Nominal current - rounded value: 4 A

Connector cross-section (max.): 0.75 mm²

Connection: Cut & Clip

Thread type connection side: M12

Thread type (wiring and installation): M12

Coding: A

Contact material: CuSn

Contact surface: Ni/Au

: IP65

Min. temperature: -40 °C

Max. temperature: +85 °C

Seal type: Screw-on

Manufacturer part #: 1413993

Content: 1 pc(s)

: Other

: 250 V

: TRUE

: Other

: Zinc

: Other

: 85-85 °C

: V0

: Insulation displacement connection

: Nickel

: II

: 3

: Straight

: 0.75-0.75 mm²

: FALSE

: 4 A

: 100

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Connection side A

Connector type

No. of pins

Nominal current - rounded value

Nominal voltage

Seal type

Thread type connection side

Phoenix Contact 1413993 Sensor/actuator connector M12 Plug, straight No. of pins (RJ): 4 1 pc(s) Piece

Item no:2209202

Unavailable

Conrad Electronic

This article

M12 plug, straight

Plug, straight

4 A

250 V AC

Screw-on

M12

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1411043 Sensor/actuator connector M12 Plug, straight No. of pins (RJ): 8 1 pc(s) Piece

Item no:2141023

Fast track dispatch on Thu 29 Oct

1 Piece(s)Conrad Electronic

M12 plug, straight

Plug, straight

500 mA

48 V AC

Screw-on

M12

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

Phoenix Contact 1021783 Sensor/actuator connector Plug, straight No. of pins (RJ): 8 1 pc(s)

Item no:2208980

Unavailable

Conrad Electronic

M12 plug, straight

Plug, straight

500 mA

48 V AC

Screw-on

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1021784 Sensor/actuator connector Plug, right angle No. of pins (RJ): 8 1 pc(s)

Item no:2208981

Unavailable

Conrad Electronic

M12 plug, right angle

Plug, right angle

500 mA

48 V AC

Screw-on

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1021815 Sensor/actuator connector Plug, straight No. of pins (RJ): 5 1 pc(s) Piece

Item no:2208982

Unavailable

Conrad Electronic

M12 plug, straight

Plug, straight

4 A

48 V AC

Screw-on

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1021816 Sensor/actuator connector M12 Plug, right angle No. of pins (RJ): 5 1 pc(s) Piece

Item no:2208983

Unavailable

Conrad Electronic

M12 plug, right angle

Plug, right angle

4 A

48 V AC

Screw-on

M12

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1021830 Sensor/actuator connector Plug, straight No. of pins (RJ): 4 1 pc(s)

Item no:2208984

Unavailable

Conrad Electronic

M12 plug, straight

Plug, straight

4 A

48 V AC

Screw-on

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1021831 Sensor/actuator connector Plug, right angle No. of pins (RJ): 4 1 pc(s)

Item no:2208985

Unavailable

Conrad Electronic

M12 plug, right angle

Plug, right angle

4 A

48 V AC

Screw-on

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1411044 Sensor/actuator connector M12 Plug, straight No. of pins (RJ): 8 1 pc(s) Piece

Item no:2140987

Unavailable

Conrad Electronic

M12 plug, straight

Plug, straight

500 mA

48 V AC

Screw-on

M12

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1411066 Sensor/actuator connector Plug, straight No. of pins (RJ): 4 1 pc(s) Piece

Item no:2141008

Unavailable

Conrad Electronic

M12 plug, straight

Plug, straight

4 A

48 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2209202 Phoenix Contact 1413993 Sensor/actuator connector M12 Plug, straight No. of pins (RJ): 4 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 2209202 Phoenix Contact 1413993 Sensor/actuator connector M12 Plug, straight No. of pins (RJ): 4 1 pc(s) Piece

Description

Safe use in the field thanks to high degrees of protection. Flexible: Plug connector for on-site assembly. Insulation displacement connection: Innovative and time-saving pre-fabrication without stripping the individual wires.
