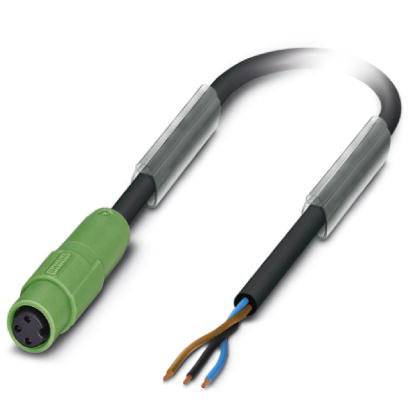

Phoenix Contact 1417703 Sensor/actuator cable M8 Socket, straight 0.60 m No. of pins (RJ): 3 50 pc(s)
Product type
Sensor/actuator cable
Connector type
Socket, straight
Connection side A
Cable, open end
Connection side B

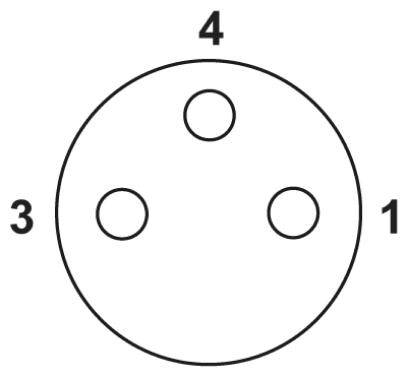

M8 socket, straight
No. of pins
3
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Standards/regulations: M8 plug connector IEC 61076-2-104
- Insulation resistance ≥ 100 MΩ
- Mating cycles: ≥ 100

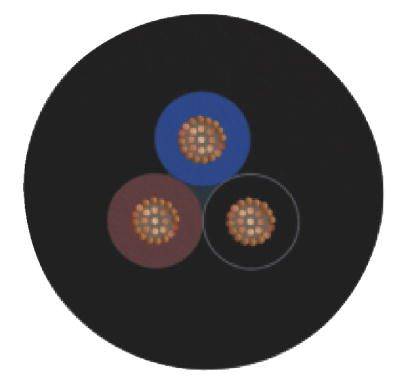

- Cable type: Pure halogen-free black
- Cable type (short code): PUR
- AWG Signal wire 24
- Outer sheath, color: Black gray RAL 7021
- Number of bend cycles: 10000000
- Travel distance: 10 m.
- Travel speed 3 m/s
- Acceleration: 10 m/s²
- Material conductor: Bare copper wire
- Pollution level 3
- Flammability class according to UL 94: HB
- Overvoltage category II
- Material grip body: TPU, flame-resistant, self-extinguishing
- Material knurl: Not available
- Material seal: NBR
- Conductor resistance: ≤ 78 Ω/km (at 20 °C)
- Type
SAC-3P- 0,6-PUR/M 8SIFS
- Product type
Sensor/actuator cable
- Connector type
Socket, straight
- Connection side A
Cable, open end
- Connection side B
M8 socket, straight
- No. of pins
3
- Cable length
0.60 m
- Jacket material
PUR
- Nominal voltage
48 V AC
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.25 mm²
- Outside Ø
3.6 mm
- Connection
M8 socket
- Thread type connection side
M8
- Contact material
CuSn
- Contact surface
Ni/Au
IP65
- Features
Halogen-free
- Min. temperature
-25 °C
- Max. temperature
+90 °C
- Manufacturer part #
1417703
- Content
50 pc(s)
- Cable diameter (details)
3.6 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2209225 Phoenix Contact 1417703 Sensor/actuator cable M8 Socket, straight 0.60 m No. of pins (RJ): 3 50 pc(s)
Datasheet 2209225 Phoenix Contact 1417703 Sensor/actuator cable M8 Socket, straight 0.60 m No. of pins (RJ): 3 50 pc(s)
User & Safety Instructions
User & Safety Instructions 2209225 Phoenix Contact 1417703 Sensor/actuator cable M8 Socket, straight 0.60 m No. of pins (RJ): 3 50 pc(s)
Description
Simple and safe: 100% electrically tested pluggable components. Our standard: The robust halogen-free PUR cable.
