Name: Phoenix Contact 1419482 RJ45 Patch cable CAT 6A 5 m 10 pc(s)
Brand: Phoenix Contact
SKU: 3583584

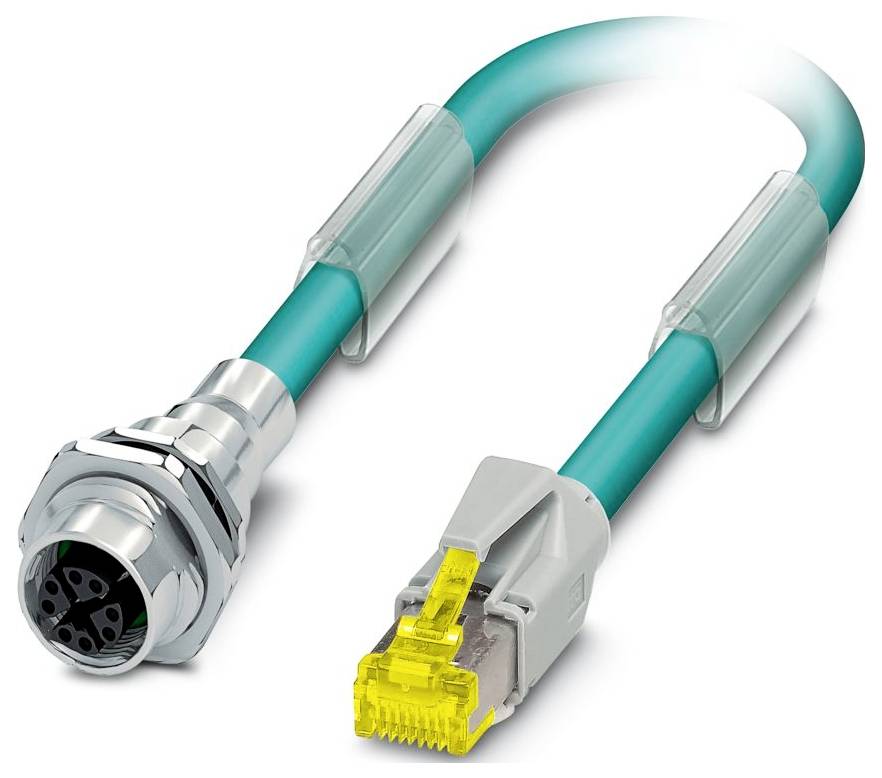

A green Ethernet cable with a yellow RJ45 connector on one end and a silver industrial connector on the other end, against a white background.

Image similar

Product type

Patch cable

Specification

CAT 6A

Connection type

RJ45

Cable length

5 m

Core material

Copper

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Number of power contacts: 0
Number of control contacts: 0
Type of plug contact, outside: Female (female)
Rated current In:0.5 A.
Operating temperature
Flammability class of insulation material according to UL94: V2
Insertion thread M12
Min Number of mating cycles: 100
With PE connection: No.
With shield connection: Yes
Protection class (IP), fitted: IP67
Surrounding temperature 60-60 °C
Material of wire insulation: Other
Contact coating material: Other
Housing material: Other

Product type: Patch cable

: CAT 6A

Connection type: RJ45

No. of A connectors: 1 x

Type A: M12 socket

No. of B connections: 1 x

Type B: RJ45 plug

Cable length: 5 m

Connector version: straight

Cable use: Networks

Version: Cable

Cable design: Round

: Copper

LAN transfer rate: 10000 MBit/s

: IP67

Number of pins: 8

Rated voltage: 48 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3583584 Phoenix Contact 1419482 RJ45 Patch cable CAT 6A 5 m 10 pc(s)

User & Safety Instructions

User & Safety Instructions 3583584 Phoenix Contact 1419482 RJ45 Patch cable CAT 6A 5 m 10 pc(s)

Description

Network cable, protection class IP67/IP20, cable length 5 m, number of poles: 8, 10 Gbit/s, CAT5, cable outlet: straight, Ethernet

This text is machine translated.

Description

Network cable, protection class IP67/IP20, cable length 5 m, number of poles: 8, 10 Gbit/s, CAT5, cable outlet: straight, Ethernet

This text is machine translated.
