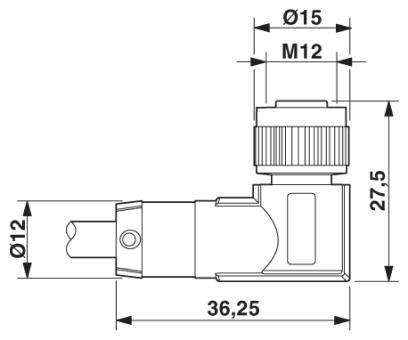

Phoenix Contact 1428636 Sensor/actuator connector M12 SPEEDCON Socket, right angle 10.00 m No. of pins (RJ): 6 1 pc(s) P
Product type
Sensor/actuator connector
Connector type
Socket, right angle
Connection side A
Cable, open end
Connection side B
M12 socket, right angle

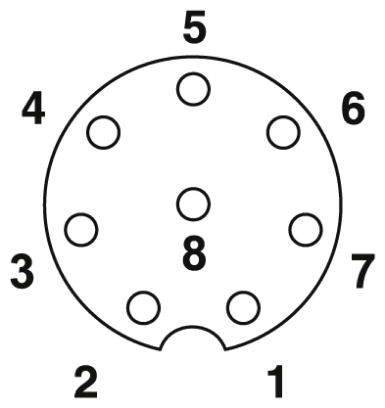

No. of pins
6
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Signal type/category: Varan, 100 MBit/s.
- Insulation resistance ≥ 100 MΩ
- Tightening torque 0.4 Nm (M12 connector)
- Cable type: Varan
- Cable type (short code): 970

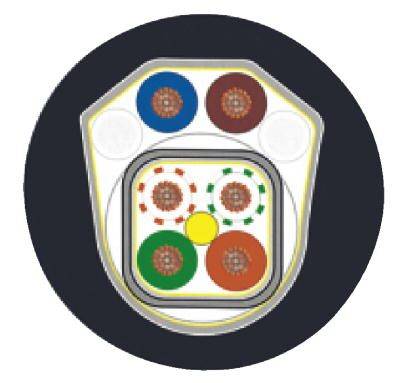

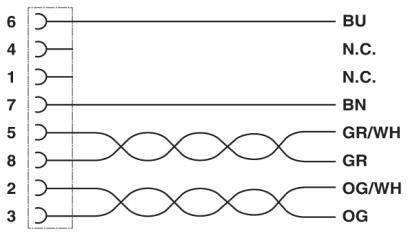

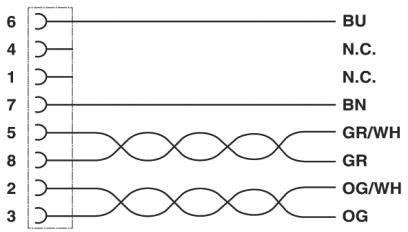

- Cable setup: 1x2xAWG22/19 + 1x4xAWG24/19
- AWG Signal wire 24
- AWG power supply 22
- Shielding: Braid made of tin-plated copper wires, covering approx. 85%
- Outer sheath, color: Black RAL 9005
- Number of bend cycles: 30000000
- Travel distance: 2 m.
- Travel speed: 1 m/s.
- Acceleration: 2 m/s²
- Material conductor: Bare copper wire
- Pollution level 3
- Flammability class according to UL 94: HB
- Overvoltage category II
- Material grip body: TPU, flame-resistant, self-extinguishing
- Material knurl: Die-cast zinc, nickel-plated
- Material seal: NBR
- Conductor resistance 77 Ω/m (data line)
- Packaging type
Piece
- Type
SAC-6P-10,0-970/FR SCO
- Product type
Sensor/actuator connector
- Connector type
Socket, right angle
- Connection side A
Cable, open end
- Connection side B
M12 socket, right angle
- No. of pins
6
- Cable length
10.00 m
- Jacket material
TPE
- Nominal voltage
30 V AC
- Nominal current
2 A
- Nominal current - rounded value
2 A
- Connector cross-section (max.)
0.25 mm²
- Outside Ø
7.8 mm
- Connection
Open cable end
- Thread type connection side
M12 SPEEDCON
- Coding
A
- Contact material
CuZn
- Contact surface
Ni/Au
IP65
- Features
Halogen-free
- Min. temperature
-25 °C
- Max. temperature
+90 °C
- Seal type
Speedcon
- Manufacturer part #
1428636
- Content
1 pc(s)
- Cable diameter (details)
7.8 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209251 Phoenix Contact 1428636 Sensor/actuator connector M12 SPEEDCON Socket, right angle 10.00 m No. of pins (RJ): 6 1 pc(s) P
Datasheet 2209251 Phoenix Contact 1428636 Sensor/actuator connector M12 SPEEDCON Socket, right angle 10.00 m No. of pins (RJ): 6 1 pc(s) P
User & Safety Instructions
User & Safety Instructions 2209251 Phoenix Contact 1428636 Sensor/actuator connector M12 SPEEDCON Socket, right angle 10.00 m No. of pins (RJ): 6 1 pc(s) P
Description
Bus system cable, VARAN (100 MBit/s), 6-pin, SANTOPRENE halogen-free/TPE halogen-free, black RAL 9005, shielded, free cable end, angled to socket M12 SPEEDCON, A-coded, cable length: 10 m.
