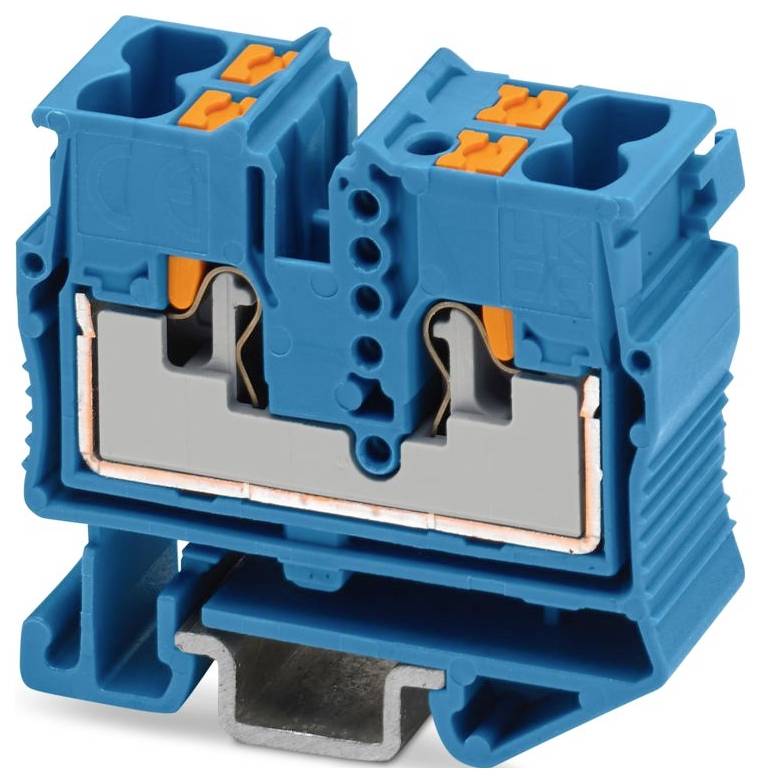

Phoenix Contact 1429437 Mini feedthrough Push-in connector Blue 50 pc(s) Piece
Packaging type
Piece
Product type
Mini feedthrough
Connection
Push-in connector
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- MPTD 2,5-NS 15 BU
Technical specifications
- Packaging type
Piece
- Product type
Mini feedthrough
- Features
built-in jumper
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- Pins per row
1
- Number of pins
1
- Factory colour
Blue
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Manufacturer part #
1429437
- Content
50 pc(s)
- Type
MPTD 2,5-NS 15 BU
- Dim
(W x H x D) 10.3 x 36 x 32.1 mm
- Width
10.3 mm
- Height
36 mm
- Flammability rating
V0
- Connector colour
Blue
- Depth
32.1 mm
- UKCA
yes
