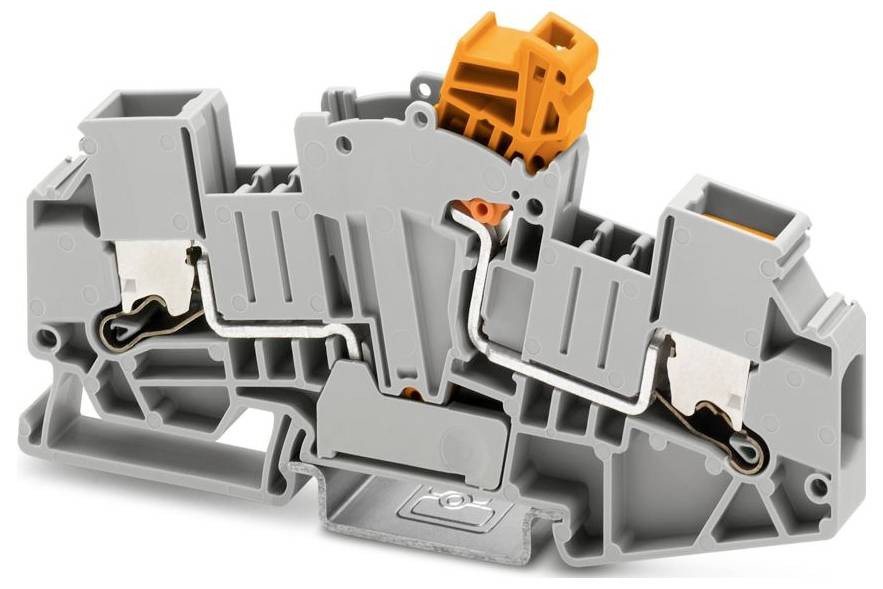

Phoenix Contact 1446173 Sensor offset N terminal Push-in spring-loaded terminal Grey 1 pc(s) Piece
Packaging type
Piece
Product type
Sensor offset N terminal
Connection
Push-in spring-loaded terminal
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Sensor offset N terminal
- Features
built-in jumper
- Connection
Push-in spring-loaded terminal
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- Factory colour
Grey
- Nominal current
30 A
- Nominal current - rounded value
30 A
- Nominal voltage
800 V
- Manufacturer part #
1446173
- Content
1 pc(s)
- Type
XTVMEA 6
- Dim
(W x H x D) 8.2 x 105.4 x 48.7 mm
- Width
8.2 mm
- Height
105.4 mm
- Flammability rating
V0
- Depth
48.7 mm
- UKCA
yes
