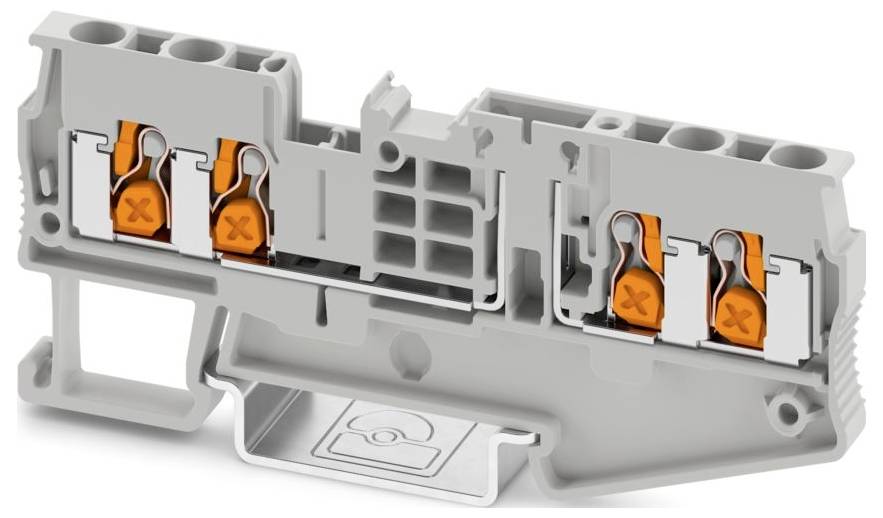

Phoenix Contact 1462727 N terminal Push-in connector Grey 50 pc(s) Piece
Packaging type
Piece
Product type
N terminal
Connection
Push-in connector
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
N terminal
- Features
built-in jumper
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Factory colour
Grey
- Nominal current
20 A
- Nominal current - rounded value
20 A
- Nominal voltage
500 V
- Manufacturer part #
1462727
- Content
50 pc(s)
- Type
XT 2,5-QUATTRO-TG
- Dim
(W x H x D) 5.2 x 84 x 35.3 mm
- Width
5.2 mm
- Height
84 mm
- Flammability rating
V0
- Connector colour
Grey
- Depth
35.3 mm
- UKCA
yes
