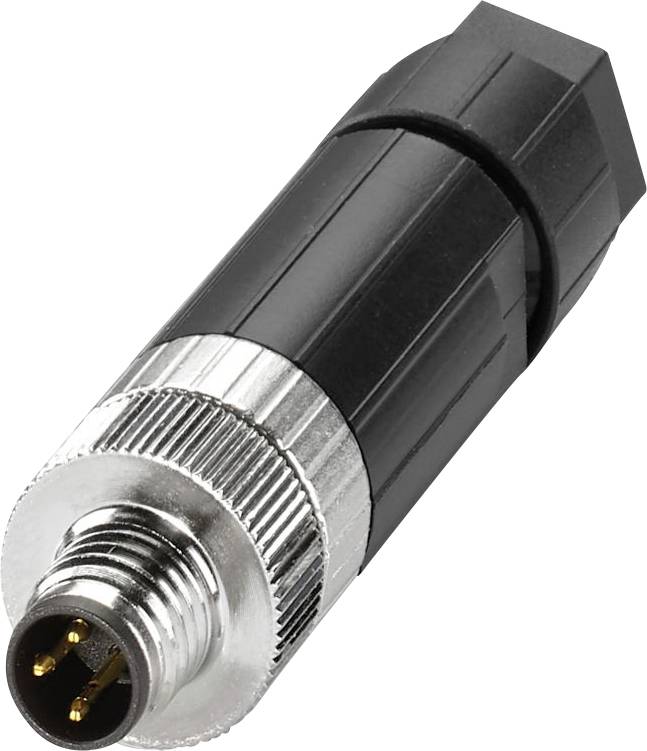

Phoenix Contact 1482516 Connector Total number of pins: 3 1 pc(s)
Product type
Connector
Total no. of pins
3
Connection
Push-lock spring terminal
Content
1 pc(s)
Nominal current - rounded value
4 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type
SACC-M 8MS-3PL-M
- Product type
Connector
- Total no. of pins
3
- Connection
Push-lock spring terminal
- Content
1 pc(s)
- Max. temperature
85 °C
- Nominal current
4 A
- Min. temperature
-25 °C
- Nominal current - rounded value
4 A
- Leading contact (PE)
No
- Cable Ø (max.)
5.5 mm
- Cable Ø up to
3.5 mm
- Case material
Plastic
- Manufacturer part #
1482516
- Cable Ø range
3.5 - 5.5 mm
- Number of pins
3
- (Ø)
14 mm
- max. cross section
0.5 mm²
- Min. cross section
0.14 mm²
- Cross-section range
0.14 - 0.5 mm²
IP65 (when installed)
- UKCA
yes
