Name: Phoenix Contact 1517602 Sensor lead LiYY11Y-HF 10 x 0.34 mm² + 2 x 0.75 mm² Black 50 m
Brand: Phoenix Contact
SKU: 2209255

A reel of black rubber hose, coiled and photographed from the side. The hose appears sturdy and flexible.

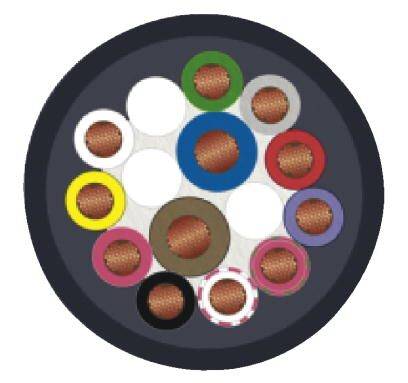

A cross-section of a multicoloured cable with several insulated conductors in different colours, enclosed within a black sheath.

1/2

Image similar

Product type

Sensor lead

No. of leads

10 x

Cross section (each core)

0.34 mm²

Cable features

Flame-retardant

Cable type

LiYY11Y-HF

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Wire colors: brown, blue, white, green, yellow, gray, pink, red, black, violet, white/pink, pink/brown
Outer sheath, material: PURE
Number of poles: 12
RATED VOLTAGE 300 V DC/AC
Cable length: 50 m
Wire diameter incl. insulation: 1.3 mm ±0.1 mm (signal line), 1.8 mm ±0.1 mm (energy line)
Total stranding: Cores stranded in layers
Wall thickness inner sheath:> 0.15 mm
Wall thickness outer sheath:> 0.38 mm
Material inner sheath: PVC
Material conductor: Bare copper wire
Bending radius 86 mm

Product type: Sensor lead

Cable type: LiYY11Y-HF

No. of leads: 10 x

Cross section (each core): 0.34 mm²

No. of leads (part 2): 2 x

Cross section (each core) (part 2): 0.75 mm²

Cross section: 10 x 0.34 mm² + 2 x 0.75 mm²

Cable features: Flame-retardant

Outside Ø: 8.6 mm

Factory colour: Black

Content: 50 m

Nominal voltage (details): 300 V

Test voltage: 2000 V

AWG max.: 22

Bend radius (no. of ODs for fixed installation): 7.5

Bend radius (no. of ODs for flexible installation): 10

Sold per metre: No

Shielded: No

Manufacturer part #: 1517602

Insulation material: PVC

Insulation: PVC

Core layout: 19x 0.15 mm, 42x 0.15 mm

Min. temperature range (flexible installation): -5 °C

Max. temperature range (flexible installation): +80 °C

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): +90 °C

Type: SACB-10X0,34/2X0,75-50 PUR

Documents & Downloads

Datasheet

Datasheet 2209255 Phoenix Contact 1517602 Sensor lead LiYY11Y-HF 10 x 0.34 mm² + 2 x 0.75 mm² Black 50 m

User & Safety Instructions

User & Safety Instructions 2209255 Phoenix Contact 1517602 Sensor lead LiYY11Y-HF 10 x 0.34 mm² + 2 x 0.75 mm² Black 50 m

Description

Main cable for sensor/actuator boxes, without PE conductor, unshielded, material PUR/PVC, 12-pin, 10 x 0.34 mm² and 2 x 0.75 mm², length 50 m.
