Name: Phoenix Contact 1559893 Sensor lead LiYY11Y-HF 16 x 0.5 mm² + 3 x 1 mm² Black 200 m
Brand: Phoenix Contact
SKU: 2209256

A black, coiled hose reel sits on a white background. The hose is compact and made of flexible material.

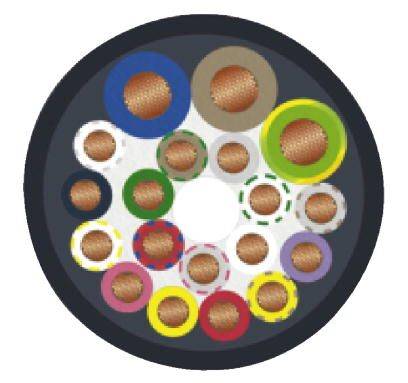

Multi-core cable cross-section, showing several isolated wires in various colours and sizes, arranged in a circular formation.

1/2

Image similar

Product type

Sensor lead

No. of leads

16 x

Cross section (each core)

0.5 mm²

Cable features

Flame-retardant

Cable type

LiYY11Y-HF

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Wire colors: brown, blue, green/yellow, white, green, yellow, gray, pink, red, black, violet, gray/pink, red/blue, white/green, brown/green, white/yellow, yellow/brown, white/gray, gray/brown
Outer sheath, material: PURE
Number of pins: 19
RATED VOLTAGE 300 V DC/AC
Cable length: 200 m
Wire diameter incl. insulation: 1.5 mm ±0.1 mm (signal line), 2.1 mm ±0.1 mm (power line)
Total stranding: Cores stranded in layers
Wall thickness inner sheath:> 0.15 mm
Wall thickness outer sheath:> 0.76 mm
Material inner sheath: PVC
Material conductor: Bare copper wire

Product type: Sensor lead

Cable type: LiYY11Y-HF

No. of leads: 16 x

Cross section (each core): 0.5 mm²

No. of leads (part 2): 3 x

Cross section (each core) (part 2): 1 mm²

Cross section: 16 x 0.5 mm² + 3 x 1 mm²

Cable features: Flame-retardant

Outside Ø: 10.5 mm

Factory colour: Black

Content: 200 m

Nominal voltage (details): 300 V

Test voltage: 2000 V

AWG max.: 20

Bend radius (no. of ODs for fixed installation): 7.5

Bend radius (no. of ODs for flexible installation): 10

Sold per metre: No

Shielded: No

Manufacturer part #: 1559893

Insulation material: PVC

Insulation: PVC

Core layout: 28x 0.15 mm, 56x 0.15 mm

Min. temperature range (flexible installation): -5 °C

Max. temperature range (flexible installation): +80 °C

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): +90 °C

Type: SACB-16X0,5/ 3X1,0-200,0 PUR

Documents & Downloads

Datasheet

Datasheet 2209256 Phoenix Contact 1559893 Sensor lead LiYY11Y-HF 16 x 0.5 mm² + 3 x 1 mm² Black 200 m

User & Safety Instructions

User & Safety Instructions 2209256 Phoenix Contact 1559893 Sensor lead LiYY11Y-HF 16 x 0.5 mm² + 3 x 1 mm² Black 200 m

Description

Main cable for sensor/actuator boxes, with PE conductor, unshielded, material PUR/PVC, 19-pin, 16 x 0.50 mm² and 3 x 1.00 mm², length: 200 m on drum
