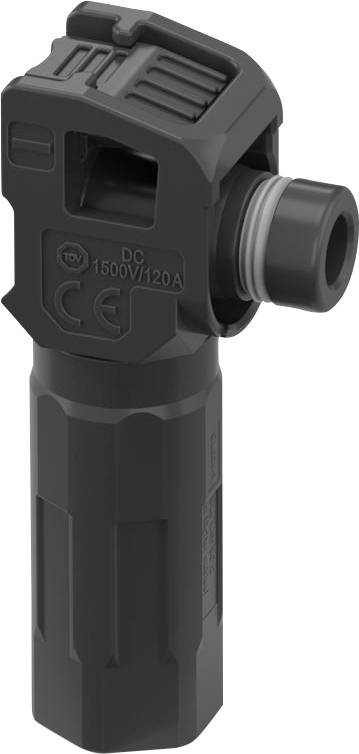

Phoenix Contact 1571084 Connector Total number of pins: 1 15 pc(s)
Product type
Connector
Total no. of pins
1
Connection
Crimp
Content
15 pc(s)
Nominal current - rounded value
120 A
EAN:
Part number:
Item no:
Technical specifications
- Core cross-section min.: 16 mm²
- Wire cross-section max.: 25 mm²
- Rated voltage: 1500 V
- Connection type: Crimp
- Contact type: Socket
- Article family: BPC 120
- Type
BPC 120 C 25 BK
- Product type
Connector
- Total no. of pins
1
- Connection
Crimp
- Factory colour
Black
- Content
15 pc(s)
- Nominal current
120 A
- Nominal current - rounded value
120 A
- Cable Ø (max.)
12.4 mm
- Cable Ø up to
8.4 mm
- Manufacturer part #
1571084
- Cable Ø range
8.4 - 12.4 mm
- Number of pins
1
- max. cross section
25 mm²
- Min. cross section
16 mm²
- Cross-section range
16 - 25 mm²
1
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3522108 Phoenix Contact 1571084 Connector Total number of pins: 1 15 pc(s)
Description
Plug connector, product family: BPC 120, color: Black, number of poles: 1, wire cross-section min.: 16 mm², wire cross-section max.: 25 mm², rated voltage: 1500, rated current: 120 A, connection type: Crimp, contact type: Socket, Cable diameter min.: 8.4 mm, cable diameter max.: 12.4 mm
