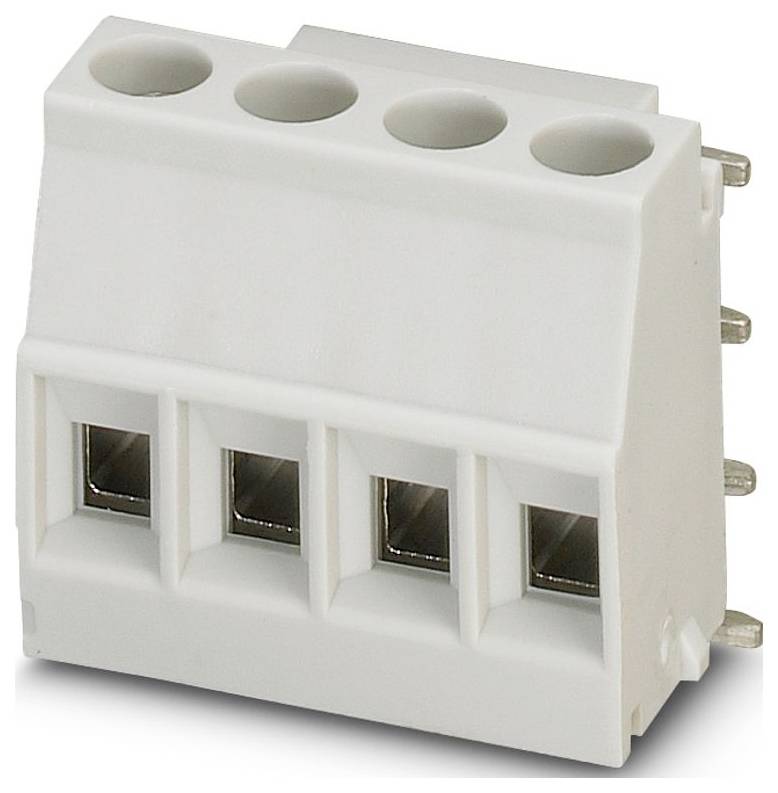

Phoenix Contact 1634829 PCB terminal 2.5 mm² Number of pins 4 Light grey 200 pc(s)
Product type
PCB terminal
CS
5 mm
Pins per row
4
Number of pins
4
Type
MKDSO 2,5/ 4-R KMGY BD:16-13SO
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type
MKDSO 2,5/ 4-R KMGY BD:16-13SO
- Product type
PCB terminal
- Features
+ extractor sleeve
- CS
5 mm
- No. of rows
1
- Pins per row
4
- Number of pins
4
- Series
MKDSO
- Nominal current
24 A
- Cross section (flexible) (min.)
0.14 mm²
- Nominal current - rounded value
24 A
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Contact material
Tin
- Factory colour
Light grey
- Manufacturer part #
1634829
- Content
200 pc(s)
- Height
21.25 mm
- Case colour
Grey
- UKCA
yes
