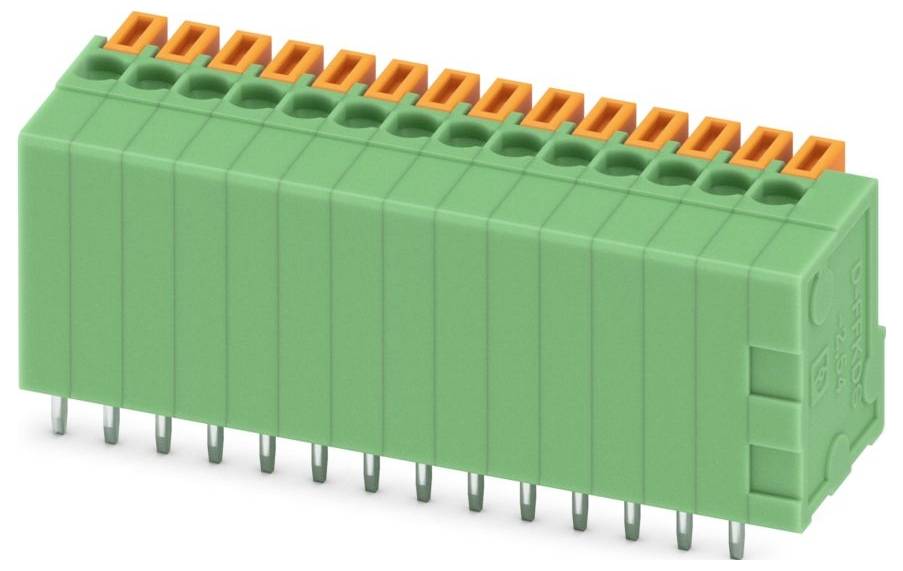

Image similar
Phoenix Contact 1700279 PCB terminal 0.5 mm² Number of pins 14 Green 10 pc(s)
Product type
PCB terminal
CS
2.54 mm
Pins per row
14
Number of pins
14
Connector orientation
Perpendicular (to the PCB)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type
FFKDSA1/V-2,54-14
- Product type
PCB terminal
- Features
+ push-in spring bracket
- CS
2.54 mm
- No. of rows
1
- Pins per row
14
- Number of pins
14
- Series
FFKDS(A)
- Nominal current
6 A
- Cross section (flexible) (min.)
0.14 mm²
- Nominal current - rounded value
6 A
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
0.5 mm²
- Cross section (inflexible) (max.)
0.5 mm²
- Connector orientation
Perpendicular (to the PCB)
- Contact material
Tin
- Factory colour
Green
- Manufacturer part #
1700279
- Content
10 pc(s)
- Height
17 mm
- Case colour
Green
- UKCA
yes
