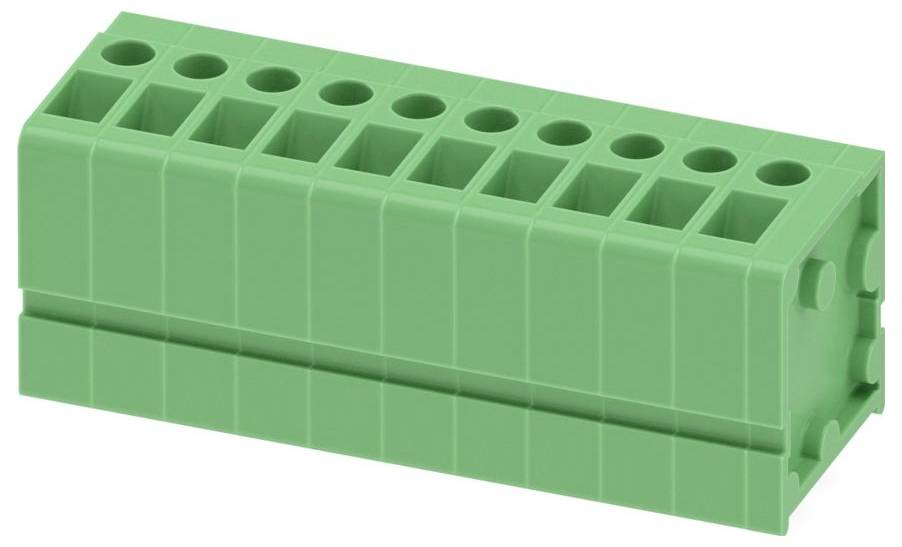

Image similar
Phoenix Contact 1700765 PCB terminal 2.5 mm² Number of pins 10 Green 20 pc(s)
Product type
PCB terminal
CS
5 mm
Pins per row
10
Number of pins
10
Connector orientation
Perpendicular (to the PCB)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Content 20 pc(s)
Technical specifications
- Type
FRONT 2,5-V/SA 5/10
- Product type
PCB terminal
- Features
Stackable
- CS
5 mm
- No. of rows
1
- Pins per row
10
- Number of pins
10
- Series
FRONT
- Nominal current
24 A
- Cross section (flexible) (min.)
0.2 mm²
- Nominal current - rounded value
24 A
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Connector orientation
Perpendicular (to the PCB)
- Contact material
Tin
- Factory colour
Green
- Manufacturer part #
1700765
- Content
20 pc(s)
- Height
23.18 mm
- Case colour
Green
- UKCA
yes
