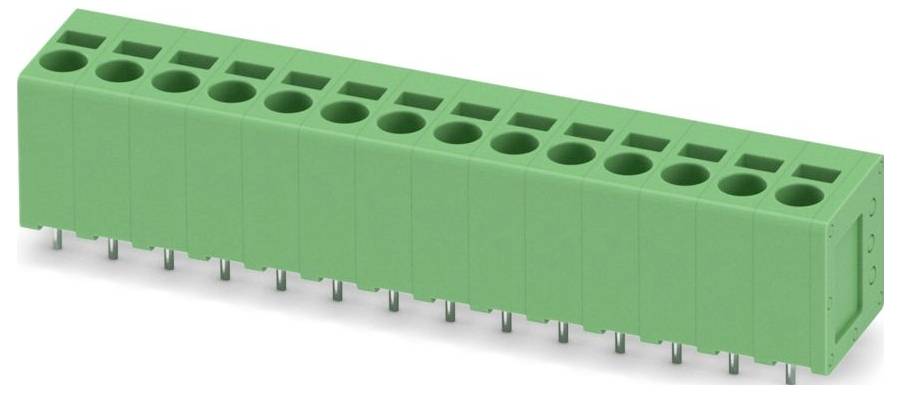

Image similar
Phoenix Contact 1704310 PCB terminal 2.5 mm² Number of pins 14 Green 40 pc(s)
Product type
PCB terminal
CS
5 mm
Pins per row
14
Number of pins
14
Connection
Push-in spring-loaded terminal
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type
SPT 2,5/14-V-5,0
- Product type
PCB terminal
- Features
+ push-in spring bracket
- CS
5 mm
- No. of rows
1
- Pins per row
14
- Number of pins
14
- Series
SPT
- Connection
Push-in spring-loaded terminal
- Nominal current
24 A
- Cross section (flexible) (min.)
0.2 mm²
- Nominal current - rounded value
24 A
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Connector orientation
Perpendicular (to the PCB)
- Contact material
Tin
- Factory colour
Green
- Manufacturer part #
1704310
- Content
40 pc(s)
- Height
16.9 mm
- Case colour
Green
- UKCA
yes
