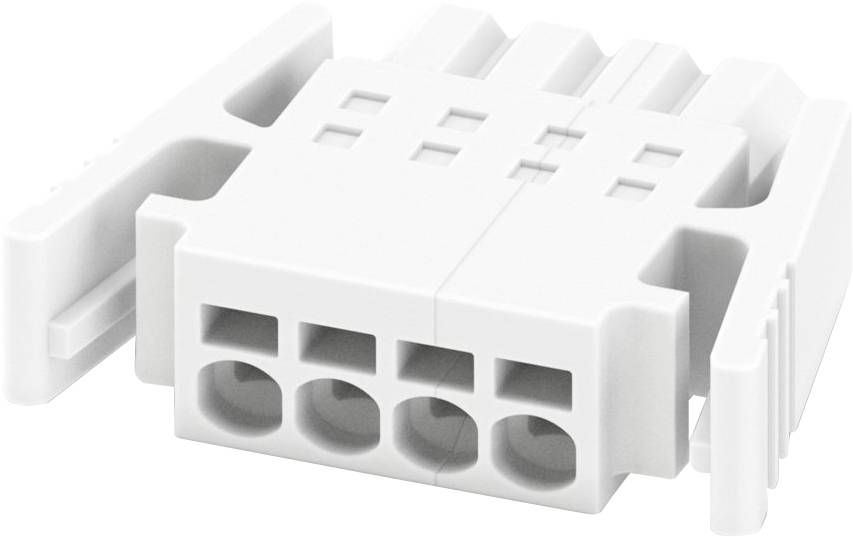

Phoenix Contact 1709460 PCB connector Total number of pins 4 No. of rows 1 250 pc(s)
Product type
PCB connector
Total no. of pins
4
CS
2.5 mm
Content
250 pc(s)
No. of rows
1
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
PCB connectors
- No. of rows 1
- Content 250 pc(s)
Technical specifications
- Connectable cable type: Round cable
- Wire cross-section with single wire connections: 0.14-0.5 mm²
- Suitable for wire cross-sections of fine wire with wire-end sleeves from 0.25 to 0.34 mm²
- Suitable for wire cross-sections of fine wire without wire-end sleeves: 0.2-0.5 mm²
- Design of electrical connection: Spring-loaded connection
- Rated voltage: 160 V
- Dimensioning surge voltage: 2.5 kV
- Flammability class of insulation material according to UL94: V0
- Contact version: Socket
- Pollution level: 2
- Material of the contact coating: Tin
- Material of the insulating body: Polyamide (PA)
- Over voltage category III
- Product type
PCB connector
- Total no. of pins
4
- No. of rows
1
- CS
2.5 mm
- Nominal current
6 A
- Nominal current - rounded value
6 A
- Factory colour
White
- Case material
PA
- Manufacturer part #
1709460
- Content
250 pc(s)
- Contact material
Copper
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Type
PTSM 0,5/ 4-PL-2,5 WH
- Number of pins
4
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3452617 Phoenix Contact 1709460 PCB connector Total number of pins 4 No. of rows 1 250 pc(s)
User & Safety Instructions
User & Safety Instructions 3452617 Phoenix Contact 1709460 PCB connector Total number of pins 4 No. of rows 1 250 pc(s)
Description
PCB connector, nominal cross-section: 0.5 mm², color: White, nominal current: 6 0 A, rated voltage (III/2): 160 V, contact surface: Sn, contact type: Socket, number of potentials: 4, number of rows: 0.5, number of connections: 2.5, product family: PTSM 1/.-PL WH, grid dimension: 4 mm, connection type: Push-in spring connection, connection direction conductor/board: 4 °, locking system: Latched flange, type of packaging: packed in carton
