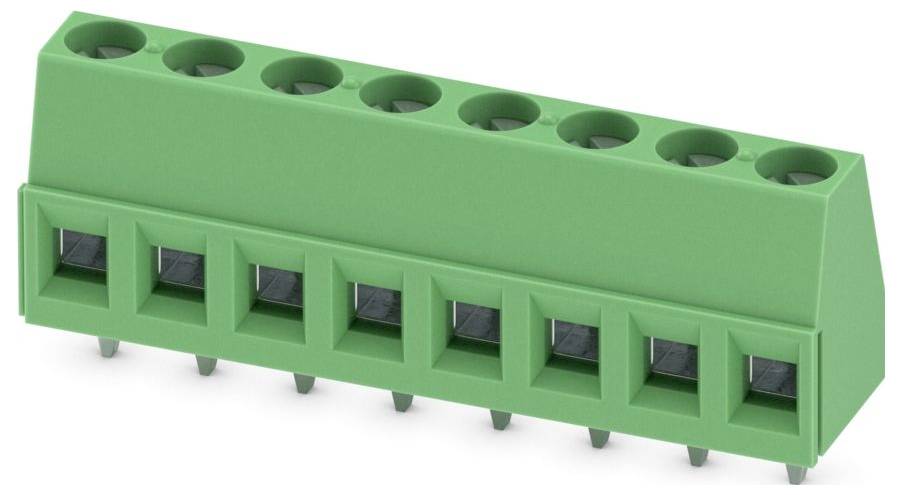

Image similar
Phoenix Contact 1715789 PCB terminal 1.5 mm² Number of pins 8 Green 50 pc(s)
Product type
PCB terminal
CS
5.08 mm
Pins per row
8
Number of pins
8
Type
MKDS 1,5/ 8-5,08
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type
MKDS 1,5/ 8-5,08
- Product type
PCB terminal
- CS
5.08 mm
- No. of rows
1
- Pins per row
8
- Number of pins
8
- Series
MKDS
- Nominal current
17.5 A
- Cross section (flexible) (min.)
0.14 mm²
- Nominal current - rounded value
17.5 A
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Contact material
Tin
- Factory colour
Green
- Manufacturer part #
1715789
- Content
50 pc(s)
- Height
17.3 mm
- Length
3.5 mm
- Case colour
Green
- UKCA
yes
